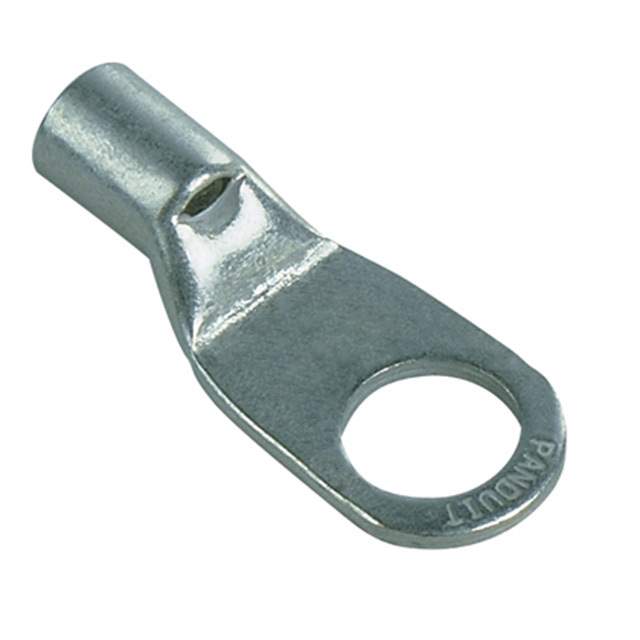

S8-10R-T

Part No S8-10R-T
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 10 Stud
Thickness 0.080" (2.03mm)
Width - Outer Edges 0.410" (10.41mm)
Length - Overall 1.100" (27.94mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 8 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Other Names 298-11890,S8-10R-T
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285174-S8-10R-T
Ultra Librarian 3D Model Ultra Librarian S8-10R-T CAD Model

Description

The Panduit Corp 1285174-S8-10R-T is a non-insulated flat sided terminal connector with a thickness of 0.080 inches and a width of 0.410 inches.

  • Insulation: Non-insulated
  • Terminal: Flat sided
  • Thickness: 0.080 inches
  • Width: 0.410 inches
  • Wire Gauge: 8 AWG
  • Stud Size: 10 stud
  • Termination: Crimping
  • Opening: Funnel
  • Package: Bulk package
  • Contact Finish: Tin
  • Contact Material: Copper
