Same model may have multiple batches, images only for reference.

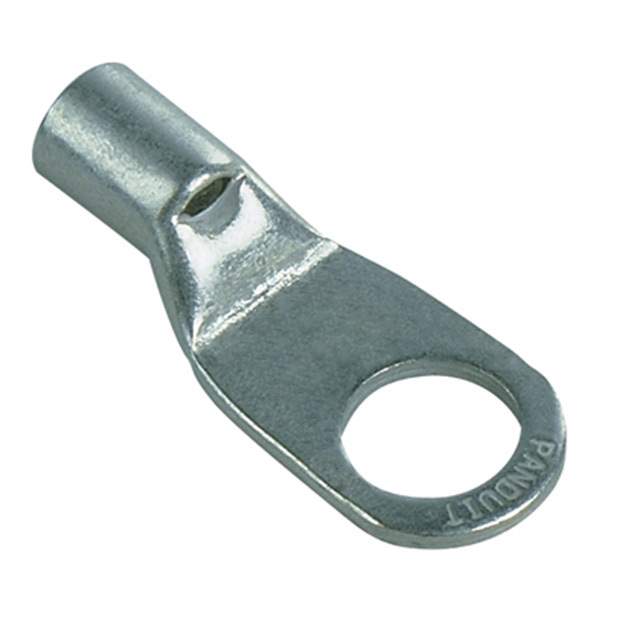

S4-14R-E Real Image
Same model may have multiple batches, images only for reference.

S4-14R-E

Part No S4-14R-E
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
S4-14R-E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 1/4 Stud
Thickness 0.090" (2.29mm)
Width - Outer Edges 0.550" (13.97mm)
Length - Overall 1.300" (33.02mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 4 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number S4-14
Other Names S4-14R-E,298-11878
Standard Package 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285179-S4-14R-E
Ultra Librarian 3D Model Ultra Librarian S4-14R-E CAD Model

Description

The S4-14R-E is a flat-sided terminal connector from Panduit Corp.

  • Wire Gauge: 4 AWG
  • Termination: Crimped
  • Opening: Funnel
  • Contact Finish: Tin
  • Contact Material: Copper
  • Insulation: Non-Insulated
  • Stud/Tab Size: 1/4 stud
  • Mounting: Free hanging (in-line)
  • REACH: Not affected by REACH
  • HTSUS: 8536.90.4000
  • Length: 1.300" (33.02mm)
  • Width: 0.550" (13.97mm)
  • Thickness: 0.090" (2.29mm)
