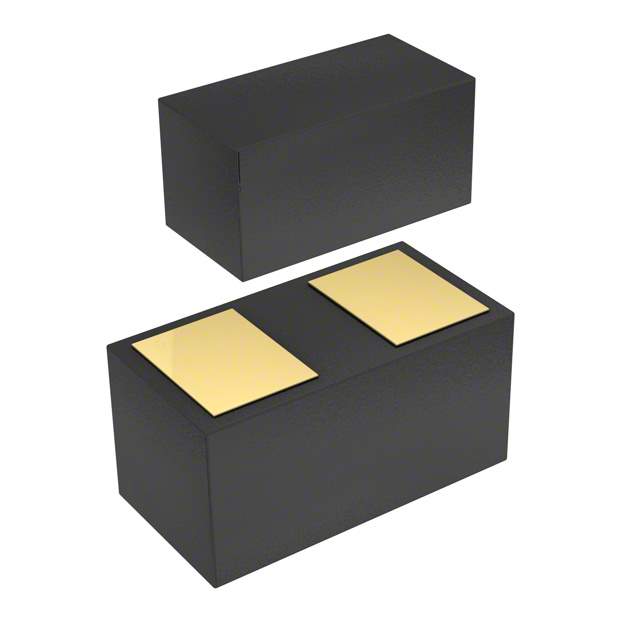

The ESD200-B1-CSP0201 is a Transient Voltage Suppression (TVS) diode manufactured by Infineon Technologies. It is designed to protect sensitive electronic components from electrostatic discharge (ESD) and other transient voltage events. This diode is commonly used in portable devices, consumer electronics, and other applications where ESD protection is critical.

Applications

• Mobile phones
• Tablets
• Laptops
• Wearable devices
• USB interfaces
• HDMI interfaces

Features

• Low clamping voltage.
• Fast response time.
• Low capacitance.
• Small form factor (CSP0201).
• Bidirectional protection.
• AEC-Q101 qualified for automotive applications.

Benefits

• Provides effective ESD protection for sensitive electronic components.
• Minimizes signal distortion due to low capacitance.
• Offers fast response to transient voltage events.
• Reduces board space requirements with its small form factor.
• Protects against both positive and negative ESD strikes.
• Suitable for use in automotive applications due to AEC-Q101 qualification.

Additional Details

The ESD200-B1-CSP0201 TVS diode features a chip-scale package (CSP) for minimal footprint and easy integration into electronic circuits. The low clamping voltage ensures that sensitive components are protected from damaging voltage levels during ESD events. The fast response time enables the diode to react quickly to transient voltage spikes, preventing damage to downstream circuitry. The low capacitance minimizes signal degradation, making it suitable for high-speed data interfaces. The bidirectional protection feature provides protection against both positive and negative ESD strikes. The AEC-Q101 qualification ensures reliable performance in harsh automotive environments. Proper layout and design techniques are essential to maximize the effectiveness of the ESD protection.
