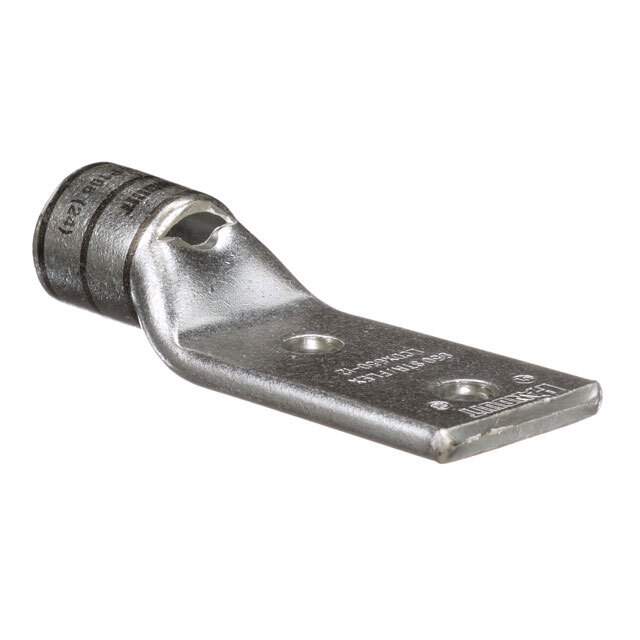

Same model may have multiple batches, images only for reference.

LCDX650-12-6

Name: LCDX650-12-6
Brand: Panduit Corp
SKU: 1105957
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LCDX650-12-6
Manufacturer	Panduit Corp
Catalog	Rectangular Connectors
Description	CONN TERM RECT TONG 650 MCM #1/2 / Terminal Connector Rectangular Rectangular Tongue 650MCM (kcmil) 1/2 Stud
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Rectangular Connectors
Mfr	Panduit Corp
Series	Pan-Lug®
Package	Bulk
Terminal Type	Rectangular Tongue
Stud/Tab Size	1/2 Stud
Terminal Style	Two Stud Holes
Tab Thickness	0.300" (7.62mm)
Length - Overall	5.250" (133.35mm)
Width - Outer Edges	1.950" (49.53mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp, Barrel
Wire Gauge	650MCM (kcmil)
Insulation	Non-Insulated
Color	Black
Contact Finish	Electro-Tin
Contact Material	Copper
Diameter - Barrel ID	1.050" (26.67mm)
Diameter - Barrel OD	1.350" (34.29mm)
Diameter - Ring ID	0.530" (13.46mm)
Base Product Number	LCDX
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	LCDX650-12-6-ND,298-22337,07498342424
Standard Package	1
Win Source Part Number	1105957-LCDX650-12-6
Ultra Librarian 3D Model	Ultra Librarian LCDX650-12-6 CAD Model

Alternative Products

Description

The Panduit Corp LCDX650-12-6 is a rectangular terminal connector with a crimp, barrel termination and electro-tin contact finish.

Termination: Crimp, Barrel
Contact Finish: Electro-Tin
Wire Gauge: 650MCM (kcmil)
Material: Copper
Insulation: Non-Insulated
Tab Thickness: 0.300" (7.62mm)
Terminal Type: Rectangular Tongue
Outer Edge Width: 1.950" (49.53mm)
Overall Length: 5.250" (133.35mm)
Stud/Tab Size: 1/2 Stud
Terminal Style: Two Stud Holes
Barrel ID Diameter: 1.050" (26.67mm)
Barrel OD Diameter: 1.350" (34.29mm)
Ring ID Diameter: 0.530" (13.46mm)
Mounting Type: Free Hanging (In-Line)
Popularity: Low popularity
