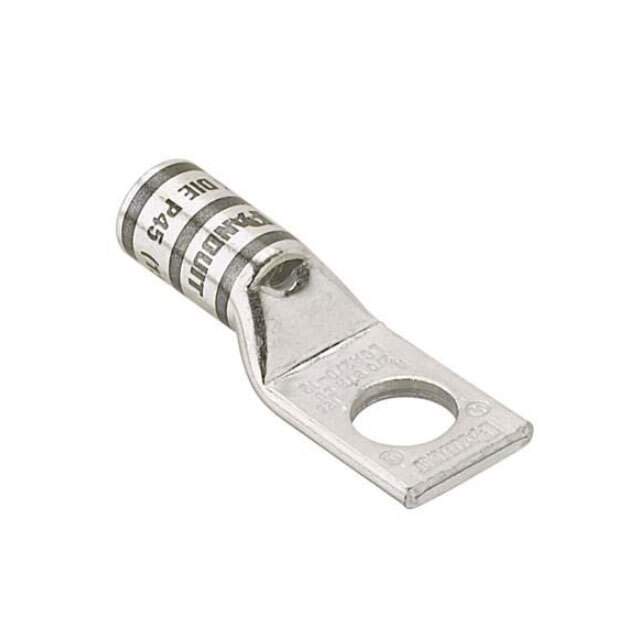

Same model may have multiple batches, images only for reference.

LCA500-58-6

Name: LCA500-58-6
Brand: Panduit Corp
SKU: 1159720
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LCA500-58-6
Manufacturer	Panduit Corp
Catalog	Rectangular Connectors
Description	CONN TERM RECT TONG 500 MCM #5/8 / Terminal Connector Rectangular Rectangular Tongue 500MCM (kcmil) 5/8 Stud
Datasheet	LCA500-58-6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Rectangular Connectors
Mfr	Panduit Corp
Series	Pan-Lug®
Package	Bulk
Terminal Type	Rectangular Tongue
Stud/Tab Size	5/8 Stud
Terminal Style	Single Stud Hole
Tab Thickness	0.220" (5.59mm)
Length - Overall	3.750" (95.25mm)
Width - Outer Edges	1.540" (39.12mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp, Barrel
Wire Gauge	500MCM (kcmil)
Insulation	Non-Insulated
Color	Brown
Contact Finish	Electro-Tin
Contact Material	Copper
Diameter - Barrel ID	0.840" (21.34mm)
Diameter - Barrel OD	1.060" (26.92mm)
Diameter - Ring ID	0.660" (16.76mm)
Base Product Number	LCA500
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	07498390065,298-14670,LCA500-58-6-ND
Standard Package	1
Win Source Part Number	1159720-LCA500-58-6
Ultra Librarian 3D Model	Ultra Librarian LCA500-58-6 CAD Model

Description

The LCA500-58-6 is a rectangular tongue terminal type connector from Panduit Corp.

Insulation: Non-Insulated
Mounting: Free Hanging (In-Line)
Terminal Style: Single Stud Hole
Contact Finish: Electro-Tin
Contact Material: Copper
Terminal: Barrel Crimp
Stud/Tab Size: 5/8
Wire Gauge: 500MCM (kcmil)
Package: Bulk
Width: 1.540" (39.12mm)
Overall Length: 3.750" (95.25mm)
Barrel ID: 0.840" (21.34mm)
Barrel OD: 1.060" (26.92mm)
Ring ID: 0.660" (16.76mm)
Tab Thickness: 0.220" (5.59mm)
Series: Pan-Lug®
Color: Brown
