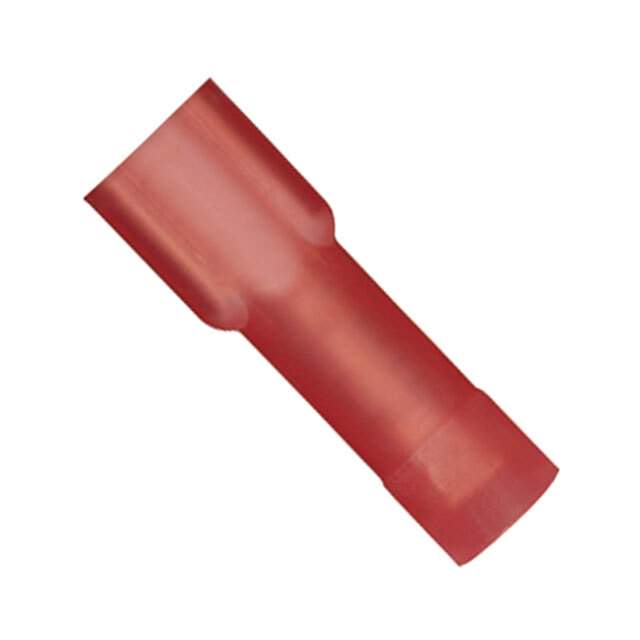

DNG18-250FB-M Real Image
Same model may have multiple batches, images only for reference.

DNG18-250FB-M

Part No DNG18-250FB-M
Manufacturer Panduit Corp
Catalog Terminals
Description CONN QC RCPT 18-22AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
Datasheet
DNG18-250FB-M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr Panduit Corp
Series SUPRA-GRIP™
Package Bulk
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.930" (23.62mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Type Free Hanging (In-Line)
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.126" (3.20mm)
Base Product Number DNG18
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1340301-DNG18-250FB-M
Ultra Librarian 3D Model Ultra Librarian DNG18-250FB-M CAD Model

Description

The DNG18-250FB-M is a SUPRA-GRIP™ female quick disconnect connector from Panduit Corp.

  • Series: SUPRA-GRIP™
  • Connector Type: Female Quick Disconnect
  • Color: Red
  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 18-22 AWG
  • Packaging: Bulk
  • Overall Length: 0.930" (23.62mm)
  • Insulation: Fully Insulated
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Insulation Diameter: 0.126" (3.20mm)
  • Mounting Type: Free Hanging (In-Line)
  • ECCN: EAR99
  • REACH: Unaffected
  • Supplier: Panduit Corp.
