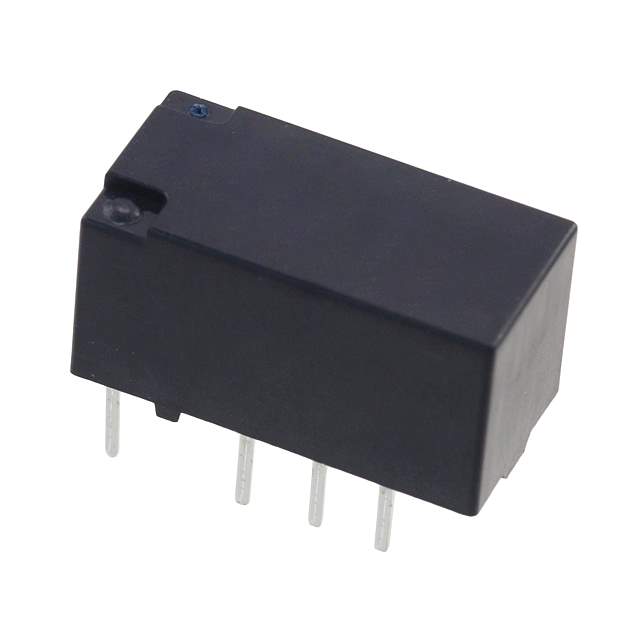

TXD2-5V Real Image
Same model may have multiple batches, images only for reference.

TXD2-5V

Part No TXD2-5V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 5VDC / General Purpose Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Manufacturer Panasonic Electric Works
Packaging Tube
Mounting Through Hole
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 220VDC - Max
Coil Current 40 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 125 Ohms
Base Product Number TXD2
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Part Number 255-2324-5,TXD2-5V-ND,TXD25V,Q1156152
Standard Package 40
Win Source Part Number 1323834-TXD2-5V
Ultra Librarian 3D Model Ultra Librarian TXD2-5V CAD Model

Description

The Panasonic Electric Works TXD2-5V is a DPDT (2 Form C) signal relay with a contact rating of 2A.

  • Coil Voltage: 5VDC
  • Coil Resistance: 125 Ohms
  • Application: General-Purpose
  • Seal Rating: Sealed, Fully Seal
  • Package: Through-Hole
  • Must Operate Voltage: 3.75VDC
  • Must Release Voltage: 0.5VDC
