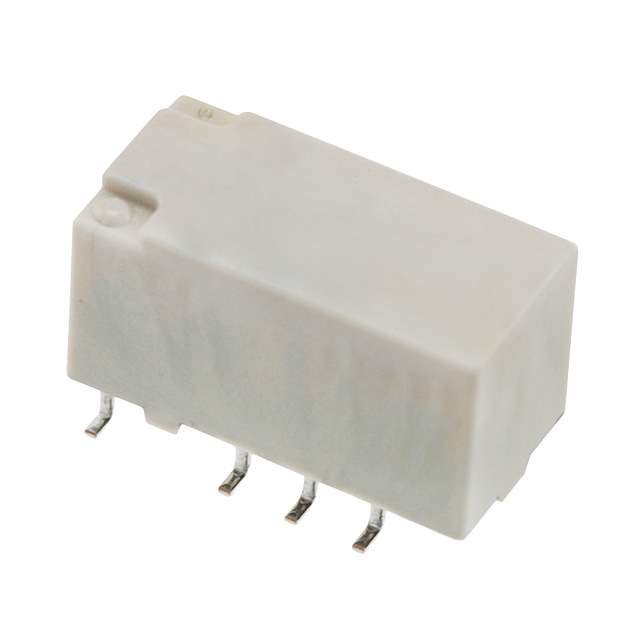

TX2SA-3V-Z

Name: TX2SA-3V-Z
Brand: Panasonic
SKU: 383903
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TX2SA-3V-Z
Manufacturer	Panasonic
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY TELECOM DPDT 2A 3V
Datasheet	TX2SA-3V-Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Relays
Manufacturer	Panasonic Electric Works
Packaging	Reel - TR
Status	Active
Relay Type	Telecom
Coil Type	Non Latching
Coil Current	46.7mA
Coil Voltage	3VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	2A
Switching Voltage	220VDC - Max
Turn On Voltage (Max)	2.25 VDC
Turn Off Voltage (Min)	0.3 VDC
Operate Time	4ms
Release Time	4ms
Features	Sealed - Fully
Mounting	SMD (SMT)
Termination Style	Gull Wing
Coil Power	140 mW
Coil Resistance	64.3 Ohms
Temperature Range - Operating	-40°C to 85°C
Win Source Part Number	126152-TX2SA-3V-Z
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian TX2SA-3V-Z CAD Model

Alternative Products

Description

The Panasonic Electric Works TX2SA-3V-Z is a DPDT (2 Form C) telecom relay with a non-latching coil type. Its manufacturer, Panasonic Electric Works, is a well-known brand in the electronic components industry.

Coil Resistance: 64.3 Ohms
Coil Current: 46.7mA
Switching Voltage: 220VDC max
