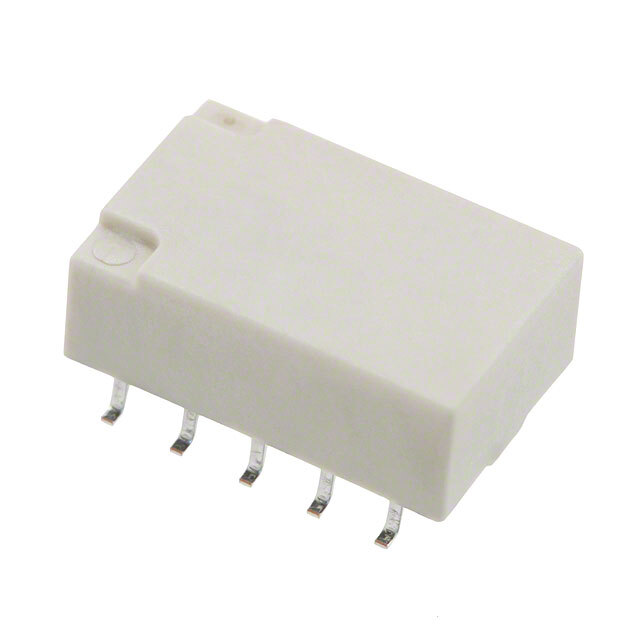

TQ2SA-L-5V-Z Panasonic
Same model may have multiple batches, images only for reference.

TQ2SA-L-5V-Z

Part No TQ2SA-L-5V-Z
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description LOW-PROFILE SURFACE-MOUNT RELAY | RELAY TELECOM DPDT 2A 5VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Reel
Mounting Style SMD
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 125VAC, 220VDC - Max
Coil Current 14.0mA
Coil Type Latching, Single Coil
Termination Style Gull Wing
Must Operate Voltage 3.75 VDC
Operate Time 4ms
Release Time 4ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi), Gold (Au)
Relay Type Telecom
Coil Resistance 357 Ohms
Manufacturer Pack Quantity 1
MSL Level 4 (72 Hours)
Win Source Part Number 750316-TQ2SA-L-5V-Z
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TQ2SA-L-5V-Z CAD Model

Description

The Panasonic Electric Works 750316-TQ2SA-L-5V-Z is a DPDT (2 Form C) telecom relay with a contact rating of 2A and a switching voltage of 125VAC or 220VDC max.

  • Contact Rating: 2A
  • Switching Voltage: 125VAC or 220VDC max
  • Coil Voltage: 5VDC
  • Coil Resistance: 357 Ohms
  • Coil Current: 14.0mA
  • Operate Time: 4ms
  • Release Time: 4ms
  • Packaging: Reel
  • Termination Style: Gull-wing
  • Mounting Type: Surface Mount
  • Seal Rating: -
  • Must Operate Voltage: 3.75 VDC
  • Must Release Voltage: -
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 4 (72 Hours)
