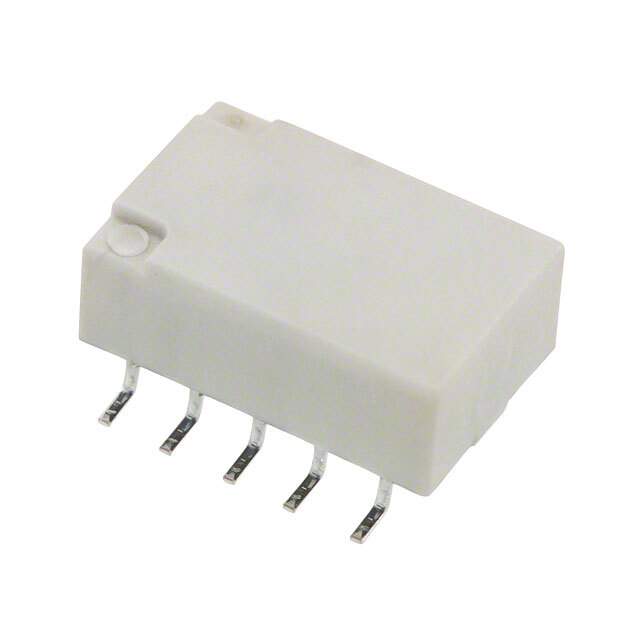

TQ2SA-48V-Z

Name: TQ2SA-48V-Z
Brand: Panasonic
SKU: 380363
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TQ2SA-48V-Z
Manufacturer	Panasonic
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY TELECOM DPDT 2A 48V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Relays
Manufacturer	Panasonic Electric Works
Packaging	Reel - TR
Status	Active
Relay Type	Telecom
Coil Type	Non Latching
Coil Current	6.3mA
Coil Voltage	48VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	2A
Switching Voltage	125VAC, 220VDC - Max
Turn On Voltage (Max)	36 VDC
Turn Off Voltage (Min)	4.8 VDC
Operate Time	4ms
Release Time	4ms
Mounting	SMD (SMT)
Termination Style	Gull Wing
Coil Power	300 mW
Coil Resistance	7.68 kOhms
Temperature Range - Operating	-40°C to 85°C
Win Source Part Number	034942-TQ2SA-48V-Z
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	500
Ultra Librarian 3D Model	Ultra Librarian TQ2SA-48V-Z CAD Model

Alternative Products

Description

The Panasonic Electric Works TQ2SA-48V-Z relay is a DPDT (2 Form C) type SMD designed for telecom applications.

Coil Voltage: 48VDC
Coil Resistance: 7.68 kOhms
Contact Rating (Current): 2A
Switching Voltage: 125VAC, 220VDC - Max
Turn-On Voltage (Max): 36 VDC
Turn-Off Voltage (Min): 4.8 VDC
Release Time: 4ms
Operate Time: 4ms
Coil Power: 300 mW
