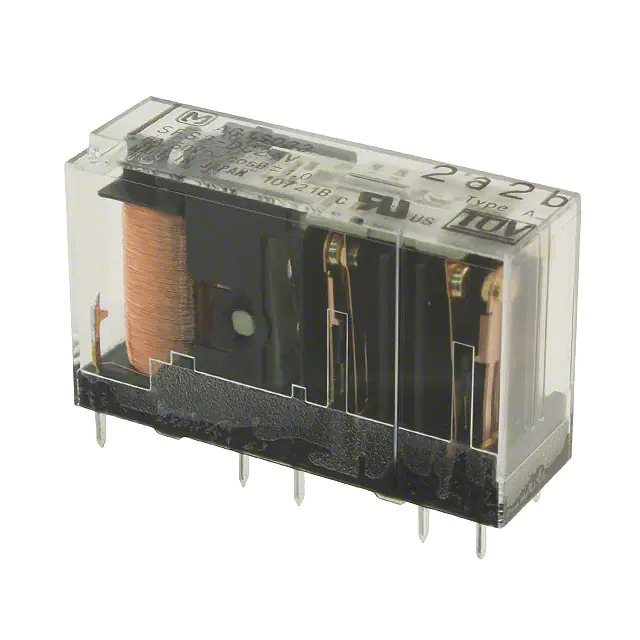

SFS5-DC24V Panasonic
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Safety Relays
Mfr Panasonic Electric Works
Series SFS
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form 6PST-5NO/1NC (5 Form A, 1 Form B)
Contact Rating (Current) 6 A
Switching Voltage 250VAC, 30VDC - Max
Features -
Termination Style PC Pin
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Current 20.8 mA
Coil Power 500mW
Coil Resistance 1.15 kOhms
Base Product Number SFS5-D
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1356619-SFS5-DC24V
Ultra Librarian 3D Model Ultra Librarian SFS5-DC24V CAD Model

Description

The Panasonic Electric Works SFS5-D is a safety relay with a coil voltage of 24VDC.

  • Coil Voltage: 24VDC
  • Contact Form: 6PST-5NO/1NC (5 Form A, 1 Form B)
  • Contact Rating: 6A
  • Switching Voltage: 250VAC and 30VDC maximum
  • Coil Current: 20.8mA
  • Must Operate Voltage: 18VDC
  • Must Release Voltage: 2.4VDC
  • Operate Time: 20ms
  • Release Time: 20ms
  • Coil Resistance: 1.15 kOhms
  • Coil Power: 500mW
  • Mounting Type: Through Hole
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Operating Temperature: -40°C to 85°C
  • Series: SFS
  • Packaging: Bulk
  • Product Status: Active
