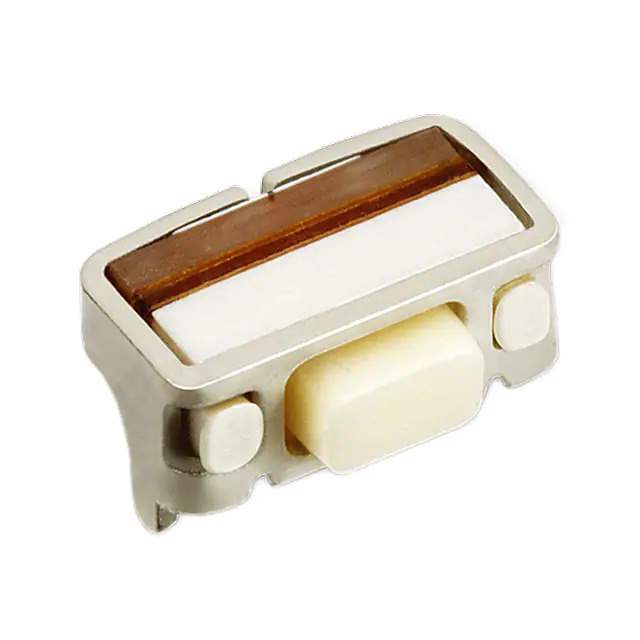

LS12T2-T Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Citizen
Series LS12
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 12VDC
Actuator Type Rectangular Button
Mounting Type Surface Mount, Right Angle
Actuator Length, Right Angle 2.85mm
Actuator Orientation Side Actuated
Termination Style SMD (SMT) Tab
Outline 3.90mm x 1.95mm
Illumination Non-Illuminated
Operating Force 160gf
Switch Travel 0.20mm
Mechanical Life 100,000 Cycles
Base Product Number LS12T2
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 878244-LS12T2-T
Ultra Librarian 3D Model Ultra Librarian LS12T2-T CAD Model

Description

The LS12T2-T is a tactile switch from Citizen's LS12 series.

  • Series: LS12
  • Mounting Type: Surface Mount
  • Actuator Type: Rectangular Button
  • Switch Travel: 0.20mm
  • Contact Rating @ Voltage: 0.02A @ 12VDC
  • Operating Force: 160gf
  • Mechanical Life: 100,000 Cycles
  • Actuator Orientation: Side Actuated
  • Outline: 3.90mm x 1.95mm
  • Illumination: Non-Illuminated
  • Operating Temperature: Unspecified
  • Packaging: Tape & Reel
  • Standard Package: 3,000 pcs
  • Product Status: Active
  • REACH Status: Unaffected
