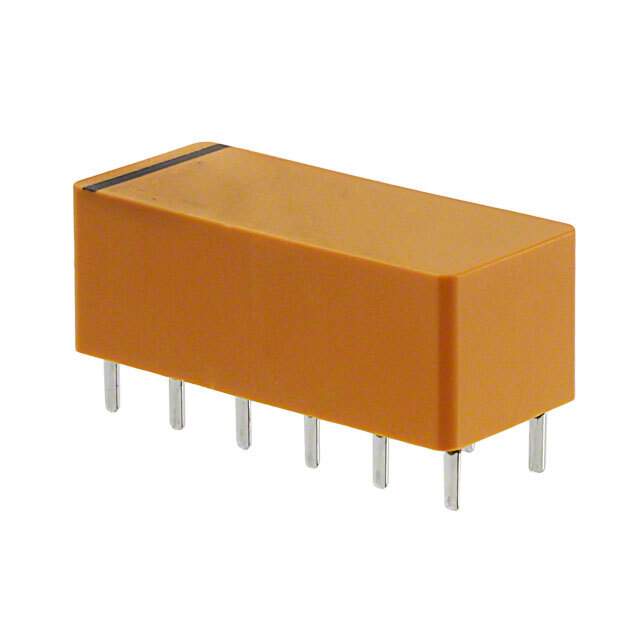

The S2EB-5V is a compact signal relay manufactured by Panasonic. It is designed for a wide range of applications requiring reliable switching of low-level signals.

Applications

• Telecommunications equipment
• Measurement and instrumentation devices
• Office automation equipment
• Audio and video equipment
• Security systems

Features

• Compact size
• High sensitivity
• Low operating power
• High insulation resistance
• High surge voltage resistance
• Nominal operating power: 100mW
• Coil voltage: 5VDC
• Contact form: 2 Form C (DPDT)

Benefits

• Saves board space due to its compact size.
• Requires minimal power to operate, contributing to energy efficiency.
• Provides reliable switching of low-level signals.
• Offers high isolation between the coil and contacts for increased safety.
• Protects against voltage surges, enhancing the relay's durability.

Additional Details

The S2EB-5V relay features a bifurcated contact design, ensuring reliable contact even with low-level signals. Its construction is designed for high vibration and shock resistance, making it suitable for demanding environments. The relay is RoHS compliant, meeting environmental regulations. The S2EB-5V series of relays from Panasonic offers a combination of compact size, high sensitivity, and reliable performance, making them a versatile choice for various signal switching applications.
