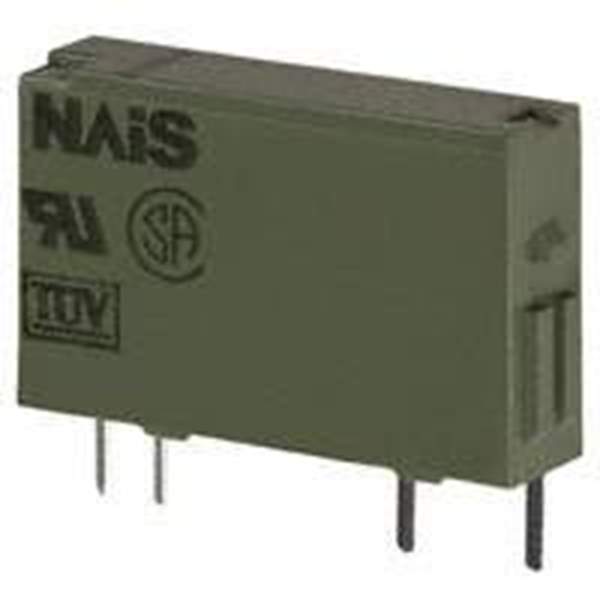

PA1A-5V Real Image
Same model may have multiple batches, images only for reference.

PA1A-5V

Part No PA1A-5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE SPST 5A 5V
Datasheet
PA1A-5V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 24mA
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 110VDC - Max
Turn On Voltage (Max) 3.5 VDC
Turn Off Voltage (Min) 0.25 VDC
Operate Time 10ms
Release Time 5ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 120 mW
Coil Resistance 208 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 026369-PA1A-5V
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Consumer Electronics, HVAC, Test & Measurement
Ultra Librarian 3D Model Ultra Librarian PA1A-5V CAD Model

Description

The Panasonic Electric Works PA1A-5V is a general-purpose relay designed for use in various applications.

  • Category: Relays
  • Manufacturer: Panasonic Electric Works
  • Relay Type: Non-Latching
  • Coil Voltage: 5VDC
