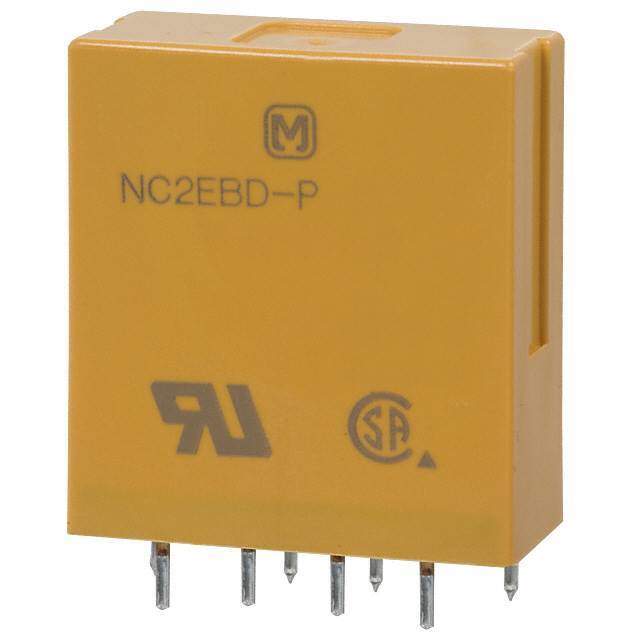

NC2EBD-P-DC24V Real Image
Same model may have multiple batches, images only for reference.

NC2EBD-P-DC24V

Part No NC2EBD-P-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 24V
Datasheet
NC2EBD-P-DC24V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 15mA
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 19.2 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 20ms
Release Time 10ms
Features Sealed - Amber
Mounting Through Hole
Termination Style PC Pin
Coil Power 360 mW
Coil Resistance 1.6 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 209051-NC2EBD-P-DC24V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NC2EBD-P-DC24V CAD Model

Description

The Panasonic Electric Works general-purpose relay is a high-performance component designed for use in various electronic applications.

  • Contact Form: DPDT (2 Form C)
  • Switching Voltage: 250VAC - Max
  • Coil Resistance: 1.6 kOhms
  • Coil Current: 15mA
  • Operate Time: 20ms
  • Release Time: 10ms
  • Coil Type: Non-latching
  • Coil Voltage: 24VDC
  • Contact Rating (current): 5A
  • Packaging: Tube/Rail
  • Supply and demand status: Limited
  • Operating Temperature Range: -40°C to 70°C
