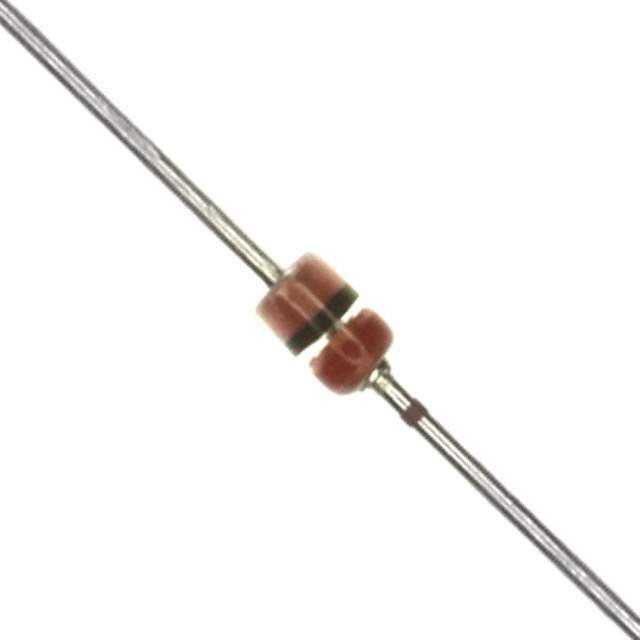

MAZ20510AG Real Image
Same model may have multiple batches, images only for reference.

MAZ20510AG

Part No MAZ20510AG
Manufacturer Panasonic
Catalog Diodes - Zener - Single
Description DIODE ZENER 5.1V 1W DO41 / Zener Diode 5.1 V 1 W ±6% Through Hole DO41-A1
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr Panasonic Electronic Components
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Voltage - Zener (Nom) (Vz) 5.1 V
Tolerance ±6%
Power - Max 1 W
Impedance (Max) (Zzt) 10 Ohms
Current - Reverse Leakage @ Vr 20 µA @ 1 V
Voltage - Forward (Vf) (Max) @ If 1 V @ 200 mA
Mounting Type Through Hole
Package / Case DO-204AL, DO-41, Axial
Supplier Device Package DO41-A1
Base Product Number MAZ2051
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0050
Other Names MAZ20510AGCT,MAZ20510AGTR
Standard Package 7,000
Win Source Part Number 1075910-MAZ20510AG
Ultra Librarian 3D Model Ultra Librarian MAZ20510AG CAD Model

Description

The MAZ20510AG is a Zener diode with a voltage rating of 5.1V and a power rating of 1W.

  • Voltage: 5.1V
  • Power: 1W
  • Tolerance: ±6%
  • Impedance: 10 Ohms
  • Mounting Type: Through-Hole
  • Package: DO-204AL, DO-41, Axial
  • Packaging: Tape & Reel (TR), Cut Tape (CT)
  • Current Reverse Leakage: 20 μA @ 1V
  • Forward Voltage: 1V @ 200 mA
  • Manufacturer: Panasonic Electronic Components
  • Status: Obsolete
  • Alternatives: BZX85C5V1-TAP, BZX85C5V1, BZX85C5V1-TR, BZX85C5V1-T50A, 1N4733ATR, 1N4733A-TAP
