The MA4ZD0300L is a Schottky Diode with a Voltage - DC Reverse (Vr) (Max) of 45V and Voltage - Forward (Vf) (Max) @ If of 600mV @ 100mA.

• It has a Reverse Recovery Time (trr) of 1.2ns and Current - Reverse Leakage @ Vr of 5μA @ 40V.
• The Diode Configuration is 2 Independent and Current - Average Rectified (Io) (per Diode) is 100mA (DC).

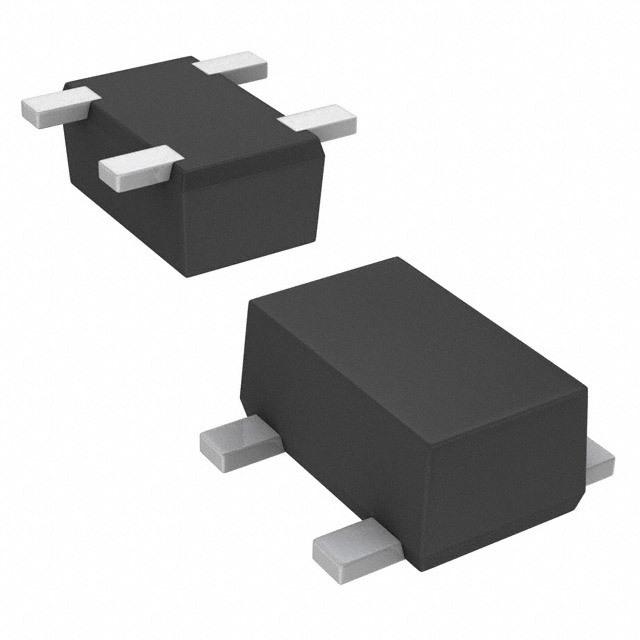

• The MA4ZD0300L is packaged in SMini4-F1 and can operate in a maximum junction temperature of 125°C.
• It is used in various applications such as rectification, voltage clamping, and switching.
• The MA4ZD0300L is an obsolete (EOL) product.
