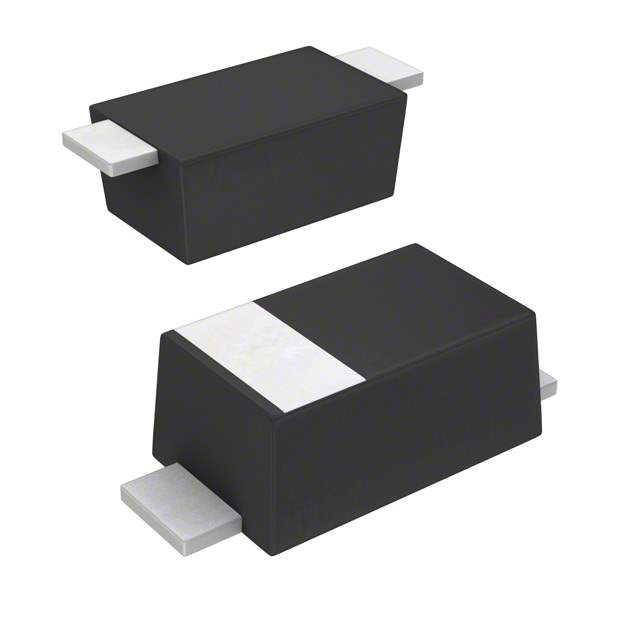

MA22D2800LT Real Image
Same model may have multiple batches, images only for reference.

MA22D2800LT

Part No MA22D2800LT
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 1.5A MINI2
Datasheet
MA22D2800LT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 460mV @ 1.5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 13ns
Current - Reverse Leakage @ Vr 100μA @ 30V
Capacitance @ Vr, F 50pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package Mini2-F1
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 073113-MA22D2800LT
Ultra Librarian 3D Model Ultra Librarian MA22D2800LT CAD Model

Description

The MA22D2800LT is a Schottky diode type electronic component manufactured by Panasonic Electronic Components. It has a maximum voltage of 30V and an average rectified current of 1.5A. The reverse recovery time is 13ns and the operating temperature range is up to 150°C. This surface-mount device is suitable for various applications that require a reliable and efficient electronic component. The device is packaged in a Mini2-F1 package.
