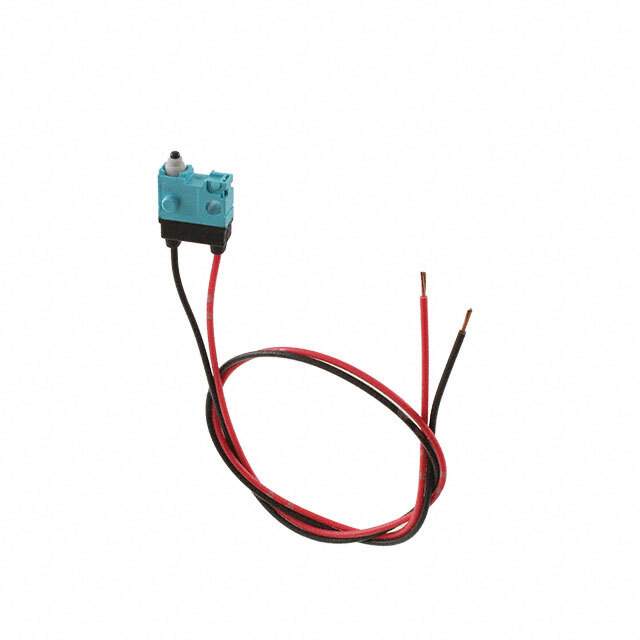

ASQ10620 Real Image
Same model may have multiple batches, images only for reference.

ASQ10620

Part No ASQ10620
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH SNAP SPST-NC 100MA 30V / Switch SPST-NC Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Panasonic Electric Works
Series ASQ1
Package Bulk
Circuit SPST-NC
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 153gf
Overtravel 0.087" (2.2mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 200,000 Cycles
Base Product Number ASQ106
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names 255-6528
Standard Package 200
Win Source Part Number 975771-ASQ10620
Ultra Librarian 3D Model Ultra Librarian ASQ10620 CAD Model

Description

The Panasonic Electric Works ASQ1 limit switch is an SPST-NC switch with an on-mom switch function.

  • Actuator Type: Round (Pin Plunger)
  • Overtravel: 0.087 inches (2.2mm)
  • Operating Position: 0.330 inches (8.4mm)
  • Voltage Rating: 30V DC
  • Current Rating: 100mA (DC)
  • Packaging: Bulk
  • Ingress Protection: IP67 - dust tight, waterproof
  • Temperature Range: -40°C to 85°C
  • Alternative Parts: 255-6528
