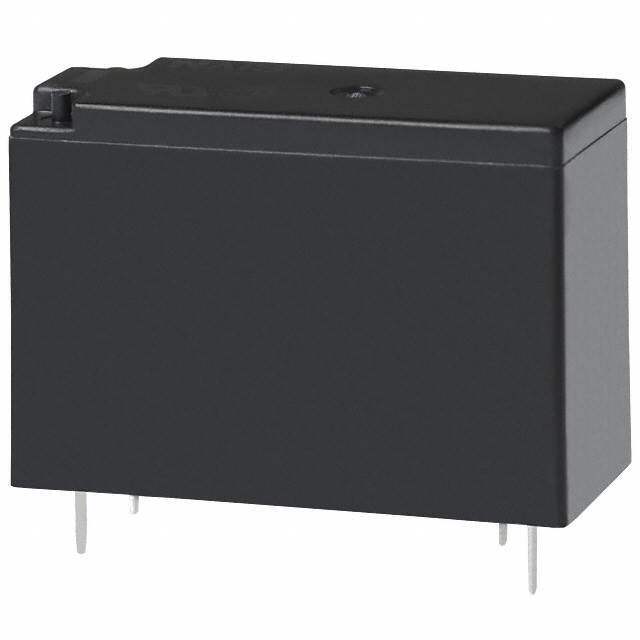

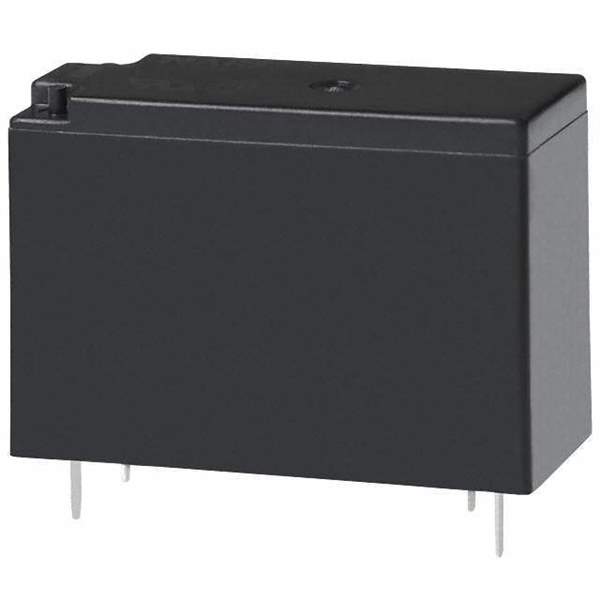

JW2SN-DC48V Real Image
Same model may have multiple batches, images only for reference.

JW2SN-DC48V

Part No JW2SN-DC48V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 48V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tray
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 11mA
Coil Voltage 48VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 33.6 VDC
Turn Off Voltage (Min) 4.8 VDC
Operate Time 15ms
Release Time 5ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 530 mW
Coil Resistance 4.4 kOhms
Temperature Range - Operating -40°C to 60°C
Win Source Part Number 040924-JW2SN-DC48V
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian JW2SN-DC48V CAD Model

Description

The Panasonic Electric Works 040924-JW2SN-DC48V is a DPDT (2 Form C) general purpose non-latching relay.

  • Coil Voltage: 48VDC
  • Coil Resistance: 4.4 kOhms
  • Sealed: Fully
  • Contact Rating (Current): 5A
  • Switching Voltage: Up to 250VAC and 30VDC
  • Maximum Turn On Voltage: 33.6VDC
  • Minimum Turn Off Voltage: 4.8VDC
  • Operate Time: 15ms
  • Release Time: 5ms
  • Mounting Type: Through-hole
  • Package: Tray
  • Coil Power: 530mW
