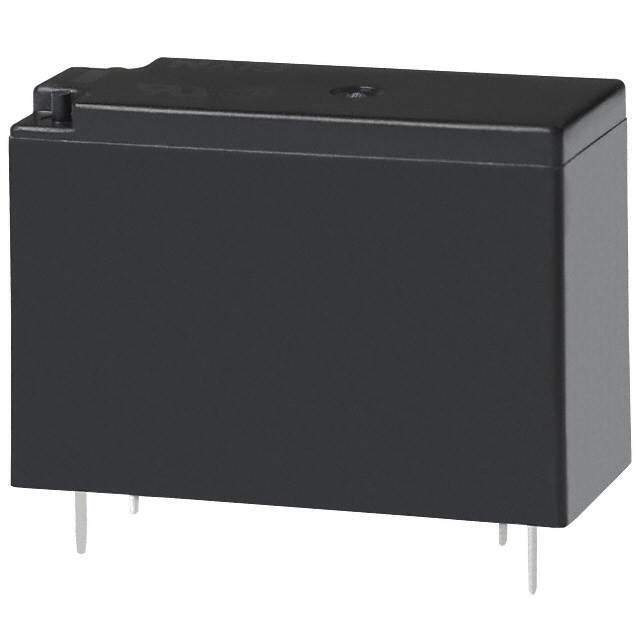

JW1FSN-DC5V Real Image1 JW1FSN-DC5V Real Image2
Same model may have multiple batches, images only for reference.
JW1FSN-DC5V Real Image1 JW1FSN-DC5V Real Image2
JW1FSN-DC5V Real Image1 JW1FSN-DC5V Real Image2
Same model may have multiple batches, images only for reference.

JW1FSN-DC5V

Part No JW1FSN-DC5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 5V / General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series JW
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 106 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation -
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 47 Ohms
Base Product Number JW1FSN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373434-JW1FSN-DC5V
Ultra Librarian 3D Model Ultra Librarian JW1FSN-DC5V CAD Model

Description

The 1189426 is a power relay from Panasonic Electric Works.

  • Series: JW
  • Coil Voltage: 5VDC
  • Contact Arrangement: SPDT (Single Pole Double Throw)
  • Contact Current Rating: 10 A
  • Switching Voltage: 250VAC, 30VDC
  • Operating Temperature: -40°C to 60°C
  • Coil Current: 106 mA
  • Coil Type: Non-Latching
  • Must Operate Voltage: 3.5 VDC
  • Mounting: Through Hole
  • Contact Material: Silver Nickel (AgNi)
  • Seal: Sealed, Fully Protected
  • Operate Time: 15 ms
  • Type: General Purpose
  • Status: Active
