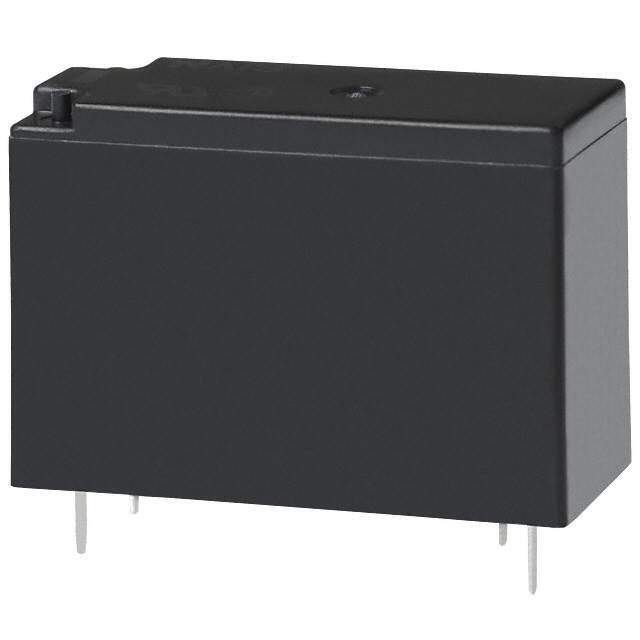

JW1AFSN-DC5V-F Real Image
Same model may have multiple batches, images only for reference.

JW1AFSN-DC5V-F

Part No JW1AFSN-DC5V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Estimated Pruduction Lead Time 49 Weeks
Features General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Manufacturer Panasonic
Series JW
Package Tube
Operating Temperature Range -40°C ~ 60°C
Mounting Through Hole
Family Name JW1AFSN
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Other Part Number JW1AFSN-DC5V-F-ND, JW1AFSNDC5VF, 255-3442
Quantity per package 100
Popularity High
Supply and Demand Status Balance
Win Source Part Number 922444-JW1AFSN-DC5V-F
Ultra Librarian 3D Model Ultra Librarian JW1AFSN-DC5V-F CAD Model

Description

The JW1AFSN-DC5V-F is a general-purpose relay from Panasonic.

  • Series: JW
  • Operating Temperature Range: -40°C to 60°C
  • Contact Configuration: SPST-NO
  • Coil Voltage: 5VDC
  • Mounting: Through-Hole
  • Package: Tube
  • Supply and Demand: Balanced
  • ECCN: EAR99
  • HTSUS Code: 8536.41.0050
