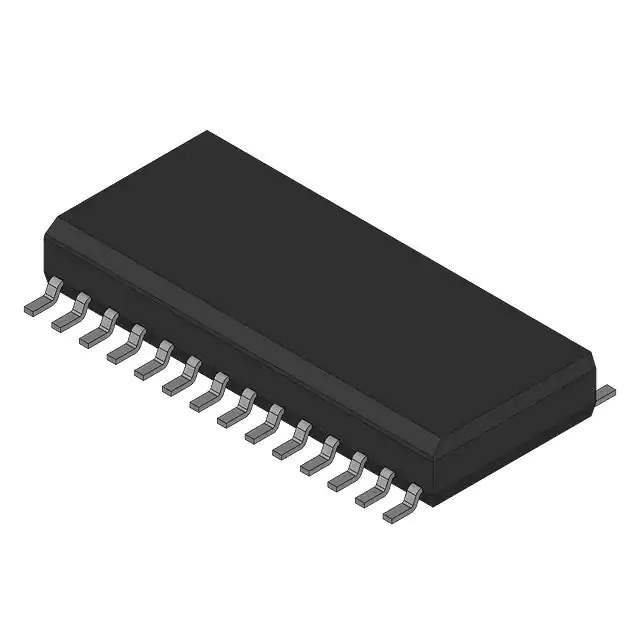

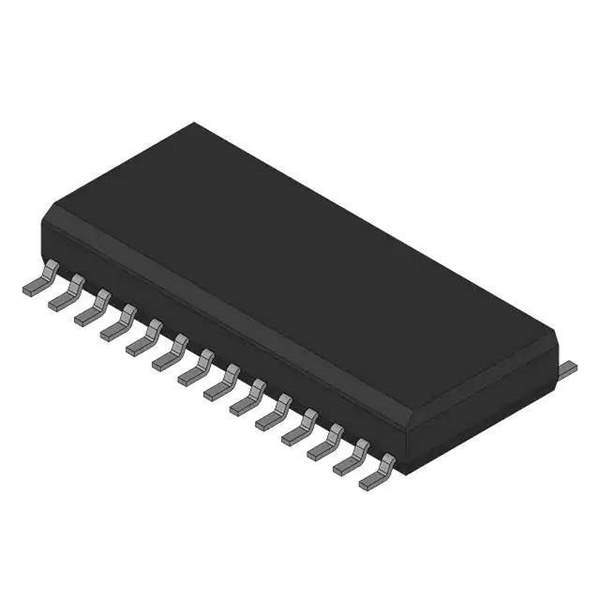

ADS7820U Real Image
Same model may have multiple batches, images only for reference.

ADS7820U

Part No ADS7820U
Manufacturer Burr-Brown (TI)
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 12BIT 28SOIC / 12 Bit Analog to Digital Converter Input 1 28-SOIC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Data Acquisition - Analog to Digital Converters (ADC)
Mfr Burr-Brown (TI)
Package Tube
Product Status Obsolete
Number of Bits 12
Sampling Rate (Per Second) 100k
Number of A/D Converters 1
Temperature Range - Operating -40°C ~ 85°C
Package / Case 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package 28-SOIC
Mounting Type Surface Mount
Standard Package 28 pcs
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 43825-ADS7820U
Ultra Librarian 3D Model Ultra Librarian ADS7820U CAD Model

Description

ADS7820U Product Description

The ADS7820U is a trusted ADC known for its reliability and accuracy in converting analog signals to digital data. It is prominently used in embedded systems and signal processing projects.

  • Applications: Audio processing, digital oscilloscopes, and automotive electronics.
  • Features and Benefits:
    • Fast Conversion Time: Enables rapid data processing with high-speed sampling rates.
    • Robust Design: Built to withstand harsh environmental conditions.
    • Cost-Effective: Provides high performance without a high cost, ideal for budget-sensitive projects.
  • Additional Details: The ADS7820U's streamlined integration process eases installation and configuration in various systems.
