Same model may have multiple batches, images only for reference.

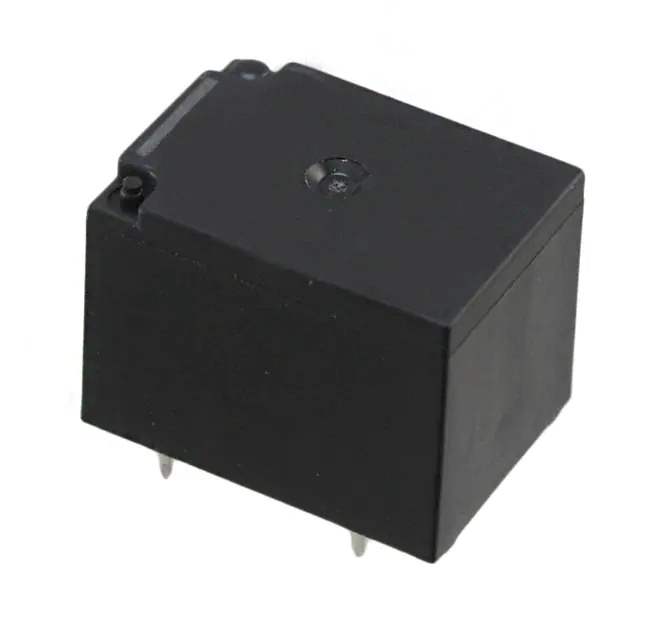

JS1-5V Real Image
Same model may have multiple batches, images only for reference.

JS1-5V

Part No JS1-5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JS
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 100VDC - Max
Coil Current 72 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 69.4 Ohms
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 609060-JS1-5V
Ultra Librarian 3D Model Ultra Librarian JS1-5V CAD Model

Description

The JS Power Relay is a high-quality electronic component designed for power relay applications from Panasonic.

  • Category: Relays - Power Relays, Over 2 Amps
  • Series: JS
  • Termination style: PC pin
  • Package: bulk with a standard package of 100 pieces
  • Contact form: SPDT (1 Form C)
  • Contact material: silver alloy
  • Coil resistance: 69.4 Ohms
  • Coil current: 72 mA
  • Operate time: 10 ms
  • Release time: 10 ms
  • Relay type: general-purpose
  • Coil type: non-latching
  • Coil voltage: 5VDC
  • Contact rating: 10A
  • Switching voltage: 250VAC and 100VDC
  • Sealed: fully sealed
  • Mounting: through hole
  • Temperature range: -40°C to 70°C
  • Win Source Part Number: 609060-JS1-5V
