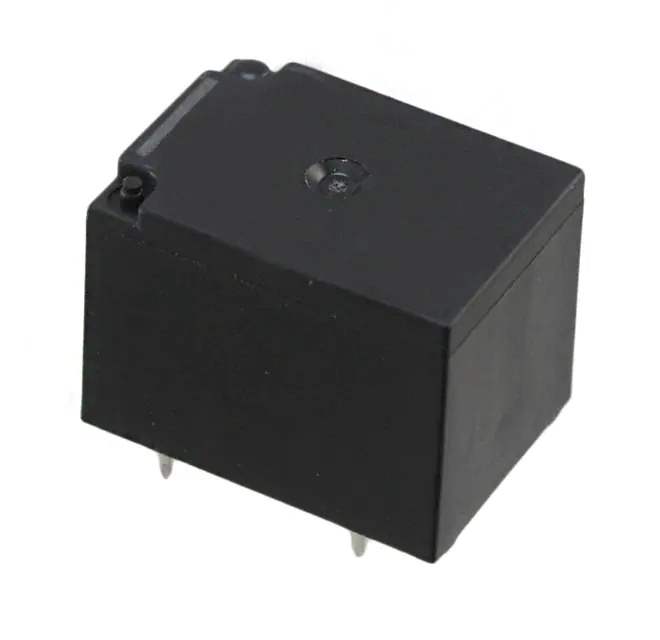

JS1-48V-F Real Image
Same model may have multiple batches, images only for reference.

JS1-48V-F

Part No JS1-48V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 48V / General Purpose Relay SPDT (1 Form C) 48VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JS
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 48VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 100VDC - Max
Coil Current 7.5 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 33.6 VDC
Must Release Voltage 4.8 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 6.4 kOhms
Base Product Number JS1-48
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 848966-JS1-48V-F
Ultra Librarian 3D Model Ultra Librarian JS1-48V-F CAD Model

Description

The JS series power relay, part number 848966-JS1-48V-F, is a high-quality relay designed for power applications. With a coil voltage of 48VDC and a coil current of 7.5mA, this relay offers reliable performance and long-lasting durability.

  • Coil Voltage: 48VDC
  • Coil Current: 7.5mA
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver tin oxide (AgSnO)
  • Maximum Contact Rating: 10A @ a switching voltage of 250VAC or 100VDC
  • Operate Time: 10ms
  • Release Time: 10ms
  • Sealed: Fully sealed
  • Mounting: Through hole
  • Temperature Range: -40°C to 70°C
  • Manufacturer: Panasonic
