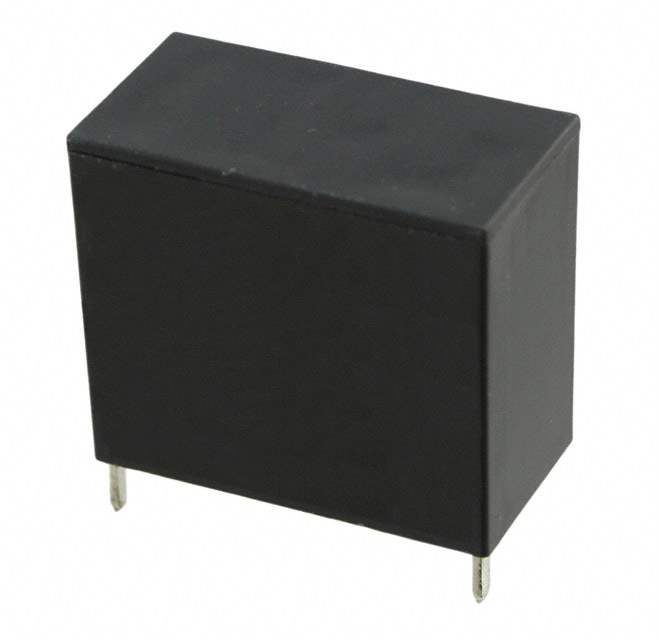

JM1AN-ZTM-DC24V Real Image
Same model may have multiple batches, images only for reference.

JM1AN-ZTM-DC24V

Part No JM1AN-ZTM-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description Power Relay 24VDC 20A SPST-NO(47.5x28.5x19.1)mm Top Mount / RELAY GEN PURPOSE SPST 20A 24V
Datasheet
JM1AN-ZTM-DC24V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 37.5mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 20ms
Release Time 10ms
Mounting Chassis Mount
Termination Style Quick Connect - 0.187"/0.250"
Coil Power 900 mW
Coil Resistance 640 Ohms
Temperature Range - Operating -40°C to 60°C
Win Source Part Number 128761-JM1AN-ZTM-DC24V
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name JM
Introduction Date January 01, 2004
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian JM1AN-ZTM-DC24V CAD Model

Description

The JM1AN-ZTM-DC24V is a general-purpose relay manufactured by Panasonic Electric Works.

  • Contact Form: SPST-NO (1 Form A)
  • Coil Voltage: 24VDC
  • Contact Rating (Current): 20A
  • Termination Style: Quick Connect
  • Mounting Style: Chassis Mount
  • Coil Resistance: 640 Ohms
  • Coil Current: 37.5mA
  • Lifecycle Status: Obsolete (EOL)
  • Operating Temperature: -40°C to 60°C
