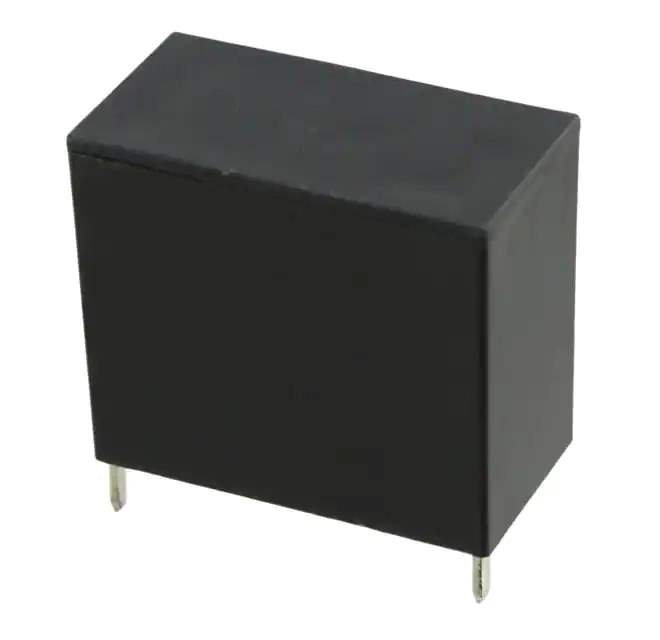

JM1AN-TMP-DC12V-F Real Image
Same model may have multiple batches, images only for reference.

JM1AN-TMP-DC12V-F

Part No JM1AN-TMP-DC12V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 20A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Datasheet
JM1AN-TMP-DC12V-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JM
Package Tray
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20 A
Switching Voltage 250VAC - Max
Coil Current 75 mA
Coil Type Non Latching
Termination Style PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating Sealed - Flux Protection
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 160 Ohms
Base Product Number JM1AN-TMP
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 876204-JM1AN-TMP-DC12V-F
Ultra Librarian 3D Model Ultra Librarian JM1AN-TMP-DC12V-F CAD Model

Description

The 876204-JM1AN-TMP-DC12V-F is a power relay from Panasonic.

  • Manufacturer: Panasonic
  • Product Name: 876204-JM1AN-TMP-DC12V-F
  • Series: JM series
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 12VDC
  • Coil Resistance: 160 Ohms
  • Maximum Current Rating: 20A
  • Switching Voltage: 250VAC
  • Design: Sealed and Flux Protected
  • Operating Temperature Range: -40°C to 60°C
  • Mounting: Through-hole
  • Package: Tray
  • Status: Obsolete (but active)
