JM1AN-P-DC12V-F Panasonic
Same model may have multiple batches, images only for reference.

JM1AN-P-DC12V-F

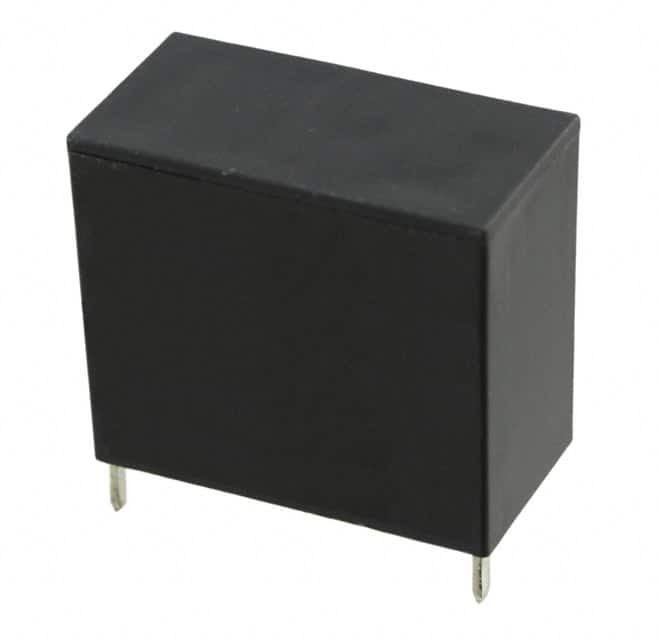

Part No JM1AN-P-DC12V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 20A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Datasheet
JM1AN-P-DC12V-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series JM
Package Tray
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20 A
Switching Voltage 250VAC - Max
Coil Current 75 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 160 Ohms
Base Product Number JM1AN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-3436,JM1AN-P-DC12V-F-ND,JM1ANPDC12VF
Standard Package 50
Win Source Part Number 1213660-JM1AN-P-DC12V-F
Ultra Librarian 3D Model Ultra Librarian JM1AN-P-DC12V-F CAD Model

Description

The Panasonic Electric Works 1213660-JM1AN-P-DC12V-F is a power relay electronic component with a contact rating of 20A and a switching voltage of 250VAC - Max. It has a coil voltage of 12VDC and a coil resistance of 160 Ohms. This component is part of the JM series and has a contact form of SPST-NO (1 Form A). It is mounted using through hole and has a standard package of 50. It has a temperature range of -40°C ~ 60°C and falls under the category of Relays>Power Relays, Over 2 Amps.
