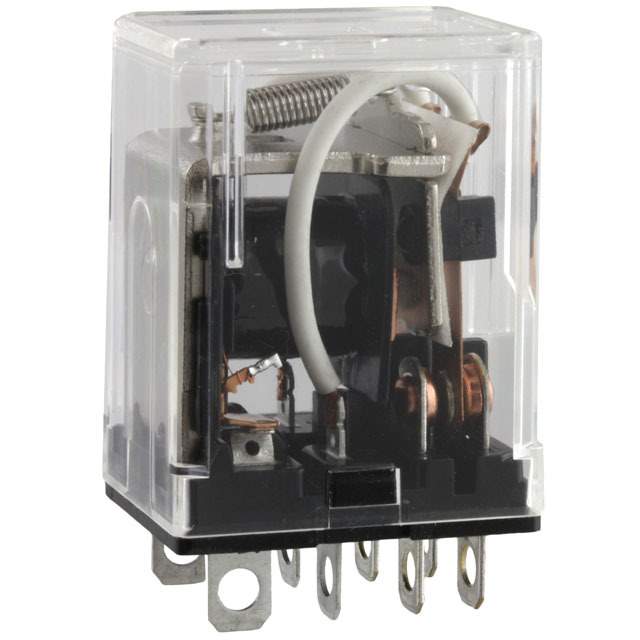

HL1-H-DC12V Real Image
Same model may have multiple batches, images only for reference.

HL1-H-DC12V

Part No HL1-H-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 15A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete
Mounting Style Socketable
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 15A
Switching Voltage 125VAC - Nom
Coil Current 75.0mA
Coil Type Non Latching
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Must Operate Voltage 9.6 VDC
Must Release Voltage 1.2 VDC
Operate Time 10ms
Release Time 5ms
Temperature Range - Operating -50°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 160 Ohms
Manufacturer Pack Quantity 20
MSL Level Not Applicable
Win Source Part Number 718509-HL1-H-DC12V
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HL1-H-DC12V CAD Model

Description

The HL1-H-DC12V is a product from Panasonic Electric Works.

  • Termination Style: Plug-in, Quick Connect
  • Mounting Style: Socketable
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Alloy
  • Coil Resistance: 160 ohms
  • Coil Current: 75.0mA
  • Operate Time: 10ms
  • Relay Type: General Purpose
  • Coil Type: Non-Latching
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 15A
  • Switching Voltage: 125VAC
  • Release Time: 5ms
  • Obsolete: Yes
  • Popularity: Low
  • Supply and Demand Status: Limited
