Same model may have multiple batches, images only for reference.

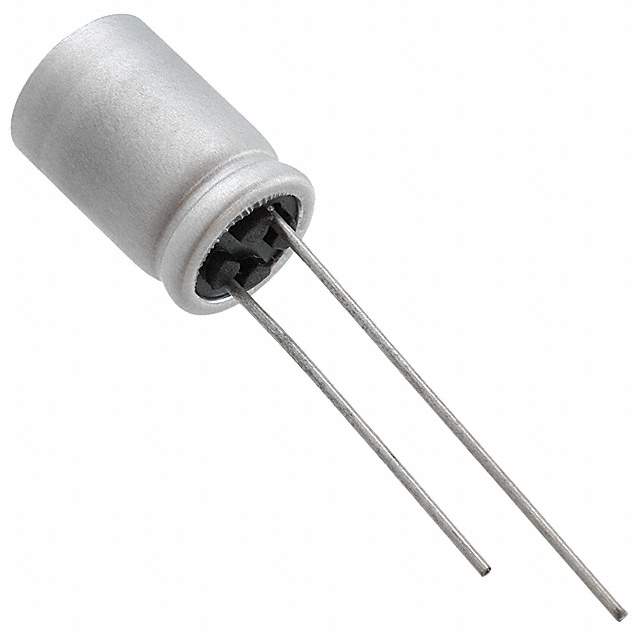

2R5SEP680M+TSS Real Image
Same model may have multiple batches, images only for reference.

2R5SEP680M+TSS

Part No 2R5SEP680M+TSS
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 680UF 20% 2.5V T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging AMMO PACKAGE
Status Active
Type Polymer
Capacitance 680μF
Tolerance ±20%
Voltage Rating 2.5V
ESR 13 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Applications General Purpose
Ripple Current - Low Frequency 226mA @ 120Hz
Ripple Current - High Frequency 4.52A @ 100kHz
Lead Spacing 0.138" (3.50mm)
Height - Seated (Max) 0.472" (12.00mm)
Mounting Through Hole
Dimension Radial, Can
Win Source Part Number 1004123-2R5SEP680M+TSS
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian 2R5SEP680M+TSS CAD Model

Description

This capacitor is manufactured by Panasonic Electronic Components and has the Win Source Part Number 1004123-2R5SEP680M+TSS.

  • Capacitance: 680μF
  • Tolerance: ±20%
  • Voltage Rating: 2.5V
  • Suitable for: General Purpose Applications
  • ESR: 13 mOhm
  • Ripple Current: 226mA @ 120Hz and 4.52A @ 100kHz
  • Supply and Demand Status: Balanced
  • Quantity per Package: 1k pcs
