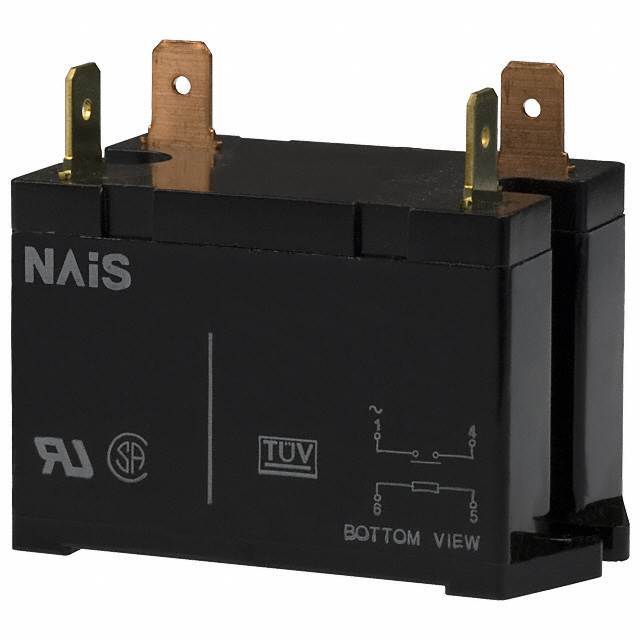

Same model may have multiple batches, images only for reference.
HE2AN-S-DC12V Panasonic – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

HE2AN-S-DC12V

Part No HE2AN-S-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 25A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Chassis Mount
Coil Voltage 12VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 25 A
Switching Voltage 277VAC, 30VDC - Max
Load - Max Switching 6925VA, 750W
Coil Current 160 mA
Coil Type Non Latching
Termination Style Screw Terminal
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 30 ms
Release Time 10 ms
Temperature Range - Operating -50°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Approval Agency CSA, VDE, UR
Relay Type General Purpose
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1549111-HE2AN-S-DC12V
Ultra Librarian 3D Model Ultra Librarian HE2AN-S-DC12V CAD Model
