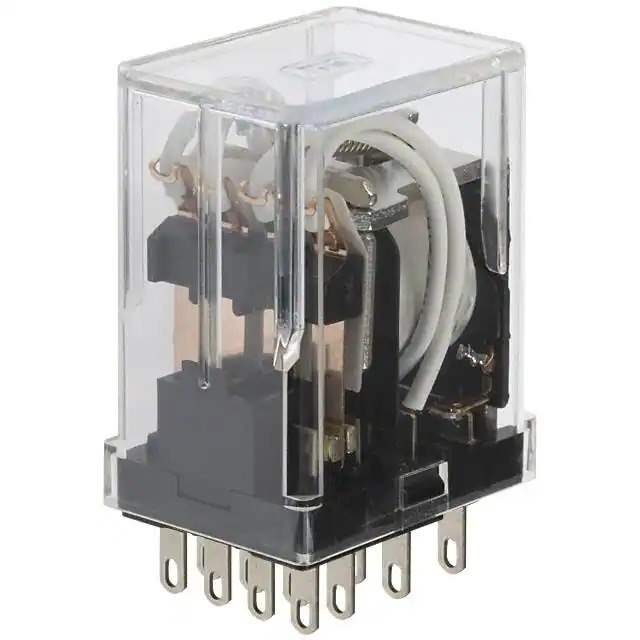

HC4-H-DC24V Real Image
Same model may have multiple batches, images only for reference.

HC4-H-DC24V

Part No HC4-H-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 5A 24V / General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series HC
Package Bulk
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC - Max
Coil Current 37 mA
Coil Type Non Latching
Termination Style Plug In
Must Operate Voltage 19.2 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -50°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 650 Ohms
Base Product Number HC4-H-DC
Standard Package 20 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 847417-HC4-H-DC24V
Ultra Librarian 3D Model Ultra Librarian HC4-H-DC24V CAD Model

Description

The Panasonic HC4-H-DC24V is a 4PDT (4 Form C) power relay designed for general-purpose applications.

  • Coil Voltage: 24VDC
  • Coil Resistance: 650 Ohms
  • Coil Current: 37 mA
  • Contact Rating: 5 A
  • Switching Voltage: 250VAC
  • Operating Temperature: -50°C to 70°C
  • Release Time: 20 ms
  • Mounting Type: Socketable
  • Contact Material: Silver Nickel
  • Series: HC
  • Product Status: Obsolete
