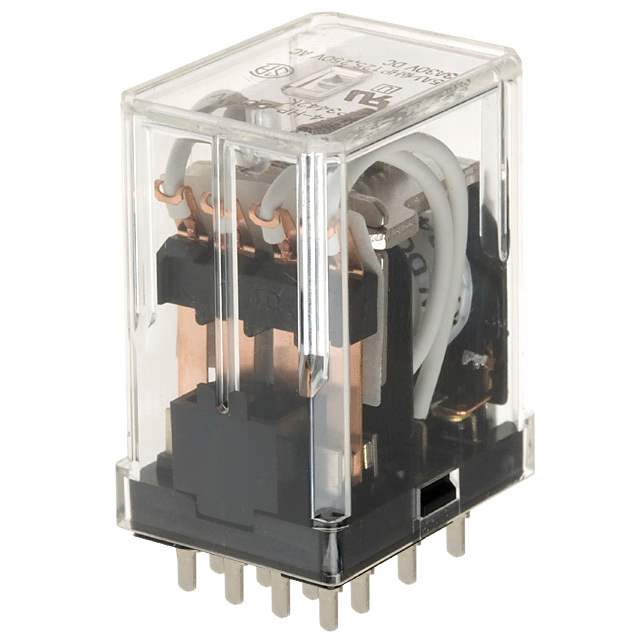

HC2-HP-AC100V Real Image
Same model may have multiple batches, images only for reference.

HC2-HP-AC100V

Part No HC2-HP-AC100V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 7A 100V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 13.2mA
Coil Voltage 100VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 7A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 80 VAC
Turn Off Voltage (Min) 30 VAC
Operate Time 20ms
Release Time 20ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 1.2 VA
Temperature Range - Operating -50°C to 70°C
Win Source Part Number 204585-HC2-HP-AC100V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HC2-HP-AC100V CAD Model

Description

The HC2-HP-AC100V from Panasonic Electric Works is a general-purpose relay that is designed to meet the requirements of various applications. With a DPDT (2 Form C) contact form and a coil voltage of 100VAC, this relay is a reliable and durable choice for manufacturers and designers. The HC2-HP-AC100V has a switching voltage of 250VAC - Max and a contact rating of 7A.
