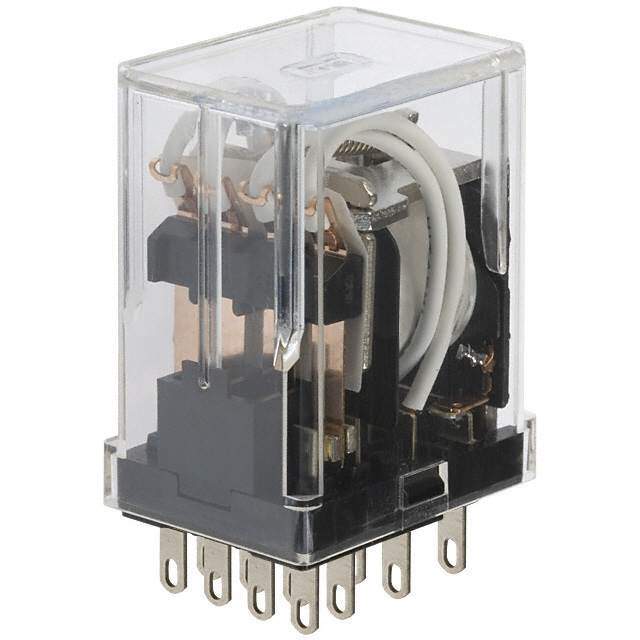

HC2-HL-DC24V-F Real Image
Same model may have multiple batches, images only for reference.

HC2-HL-DC24V-F

Part No HC2-HL-DC24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 7A 24V / Relays 24VDC 650Ohm 7A DPDT(27.2mm 20.8mm 35.2mm) Plug-In General Purpose Relay Automotive
Datasheet
HC2-HL-DC24V-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series HC
Packaging Bulk
Relay Type General
Coil Type Non Latching
Coil Current 37mA
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 7A
Switching Voltage 250VAC - Max
Turn On Voltage (Maximum) 19.2 VDC
Turn Off Voltage (Minimum) 2.4 VDC
Operate Time 20ms
Release Time 20ms
Features LED Indicator
Mounting Socketable
Termination Style Plug In
Contact Material Silver Alloy, Cadmium Free
Coil Power 900 mW
Coil Resistance 650 Ohms
Operating Temperature Range -50°C ~ 60°C
Win Source Part Number 775623-HC2-HL-DC24V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Family Name HC
Introduction Date April 01, 2005
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian HC2-HL-DC24V-F CAD Model

Description

The Panasonic Electric Works 775623-HC2-HL-DC24V-F is a DPDT (2 Form C) relay from Panasonic Electric Works.

  • Coil Voltage: 24VDC
  • Contact Material: Silver Alloy, Cadmium-Free
  • Mounting Style: Socketable
  • Indicator: LED
  • Coil Resistance: 650 Ohms
  • Supply and Demand: Limited
