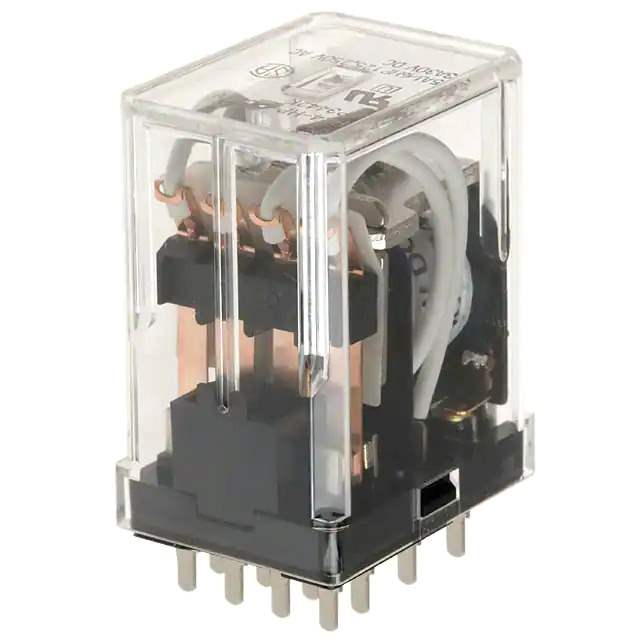

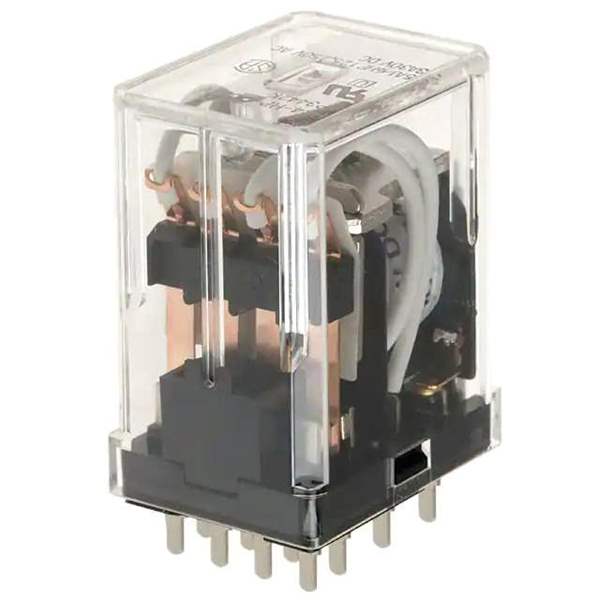

HC1-HP-AC12V Real Image
Same model may have multiple batches, images only for reference.

HC1-HP-AC12V

Part No HC1-HP-AC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 12V
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series HC
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VAC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC - Max
Coil Current 100 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 9.6 VAC
Must Release Voltage 3.6 VAC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -50°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Base Product Number HC1-HP-AC
Standard Package 20 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 873232-HC1-HP-AC12V
Ultra Librarian 3D Model Ultra Librarian HC1-HP-AC12V CAD Model

Description

The Panasonic HC1-HP-AC12V is a power relay with a PC pin termination style.

  • Series: HC
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Alloy
  • Contact Rating: 10A
  • Coil Voltage: 12VAC
  • Coil Current: 100mA
  • Switching Voltage: 250VAC
  • Release Time: 10ms
  • Mounting: Through-Hole
  • Operating Temperature: -50°C to 70°C
  • Product Status: Obsolete
  • Moisture Sensitivity Level: 1 (Unlimited)
  • Application: General Purpose
