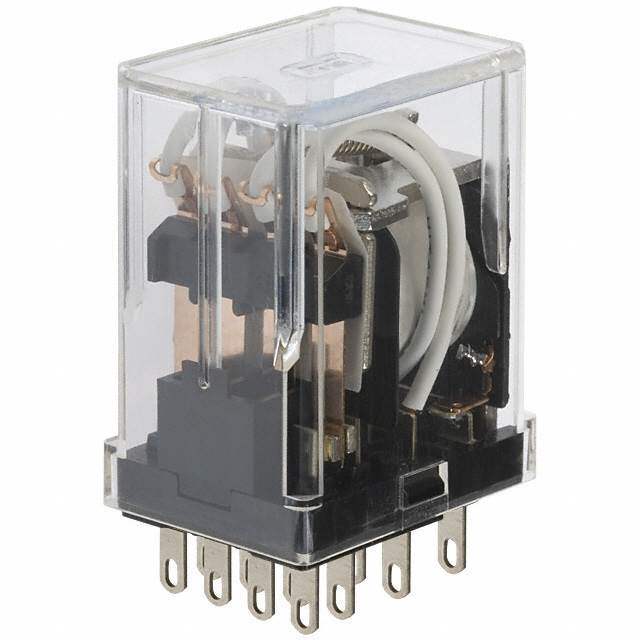

HC1-H-DC100V Real Image
Same model may have multiple batches, images only for reference.

HC1-H-DC100V

Part No HC1-H-DC100V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 100V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 11mA
Coil Voltage 100VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 80 VDC
Turn Off Voltage (Min) 10 VDC
Operate Time 20ms
Release Time 20ms
Mounting Socketable
Termination Style Plug In
Coil Power 1 W
Coil Resistance 10 kOhms
Temperature Range - Operating -50°C to 70°C
Win Source Part Number 204584-HC1-H-DC100V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HC1-H-DC100V CAD Model

Description

The electronic component with Id 148575 is a General Purpose Relay product from Panasonic Electric Works. The Win Source Part Number is 204584-HC1-H-DC100V. This product comes in bulk packaging and has plug-in termination style. It has SPDT (1 Form C) contact form and socketable mounting.

  • Coil Resistance: 10 kOhms
  • Coil Current: 11mA
  • Operate Time: 20ms
  • Relay Type: Non-Latching
  • Coil Voltage: 100VDC
  • Contact Rating (Current): 10A
  • Switching Voltage: 250VAC - Max
  • Turn On Voltage (Max): 80 VDC
  • Turn Off Voltage (Min): 10 VDC
  • Release Time: 20ms
  • Coil Power: 1 W
  • Operating Temperature: -50°C to 70°C
  • Supply and Demand: Limited
