Same model may have multiple batches, images only for reference.

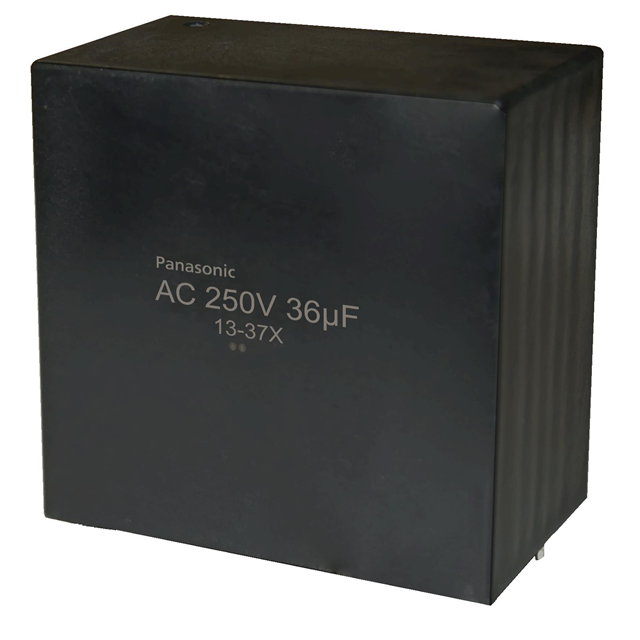

EZP-Q38805LTD Real Image
Same model may have multiple batches, images only for reference.

EZP-Q38805LTD

Part No EZP-Q38805LTD
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 8UF 5% 380VAC RADIAL / 8 µF Film Capacitor 380V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Panasonic Electronic Components
Series EZPQ
Package Bulk
Capacitance 8 µF
Tolerance ±5%
Voltage Rating - AC 380V
Dielectric Material Polypropylene (PP) , Metallized
ESR (Equivalent Series Resistance) 11.9 mOhms
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.634" L x 1.083" W (41.50mm x 27.50mm)
Height - Seated (Max) 1.693" (43.00mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications General Purpose
Features Long Life, Low ESR
Base Product Number EZP-Q
Standard Package 150
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1340304-EZP-Q38805LTD
Ultra Librarian 3D Model Ultra Librarian EZP-Q38805LTD CAD Model

Description

This film capacitor is an EZPQ type with a capacitance of 8 µF and a tolerance of ±5 percent.

  • Series: EZPQ
  • Capacitance: 8 µF
  • Tolerance: ±5 percent
  • Voltage Rating AC: 380V
  • Height Seated: 1.693 inches (Max)
  • ESR: 11.9 mOhms
  • Dielectric Material: Polypropylene (PP), Metallized
  • Lead Spacing: 1.476 inches
  • Termination: PC Pins
  • ECCN: EAR99
  • REACH Status: Unaffected
  • MSL Level: Not Applicable
  • HTSUS: 8532.25.0020
  • Manufacturer: Panasonic Electronic Components
