Same model may have multiple batches, images only for reference.

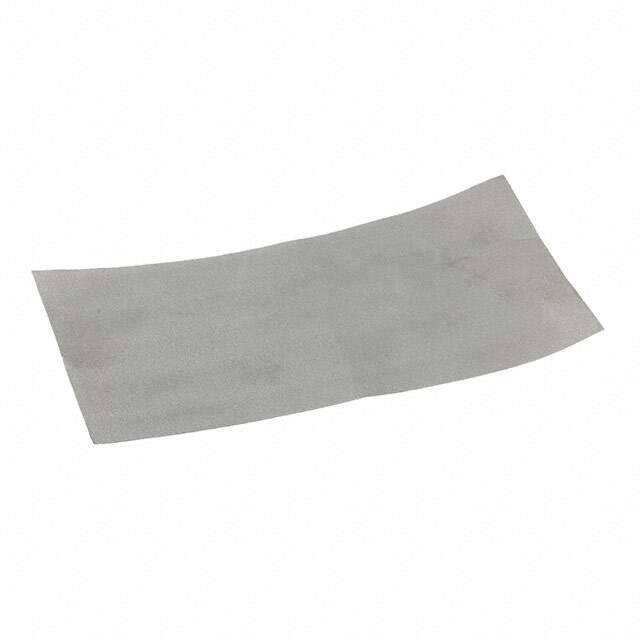

EYG-S0918ZLX2 Real Image
Same model may have multiple batches, images only for reference.

EYG-S0918ZLX2

Part No EYG-S0918ZLX2
Manufacturer Panasonic
Catalog Thermal - Pads, Sheets
Description SOFT PGS (COMPRESSIBLE TYPE)
Datasheet
EYG-S0918ZLX2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Panasonic Electronic Components
Status Active
Usage Sheet
Shape Rectangle
Outline 90.00mm x 180.00mm
Thickness 0.0079" (0.200mm)
Material Graphite
Color Gray
Thermal Conductivity 20 W/m-K
Win Source Part Number 1093166-EYG-S0918ZLX2
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EYG-S0918ZLX2 CAD Model

Description

The Panasonic Electronic Components 1093166-EYG-S0918ZLX2 is a high-quality graphite sheet that has a thickness of 0.0079 inches (0.200mm) and measures 90.00mm x 180.00mm.

  • Thickness: 0.0079 inches (0.200mm)
  • Dimensions: 90.00mm x 180.00mm
  • Color: Gray
  • Application: Thermal Management
  • Thermal Conductivity: 20 W/m-K
  • Adhesive/Backing: None
  • Supply and Demand Status: Sufficient
