Same model may have multiple batches, images only for reference.

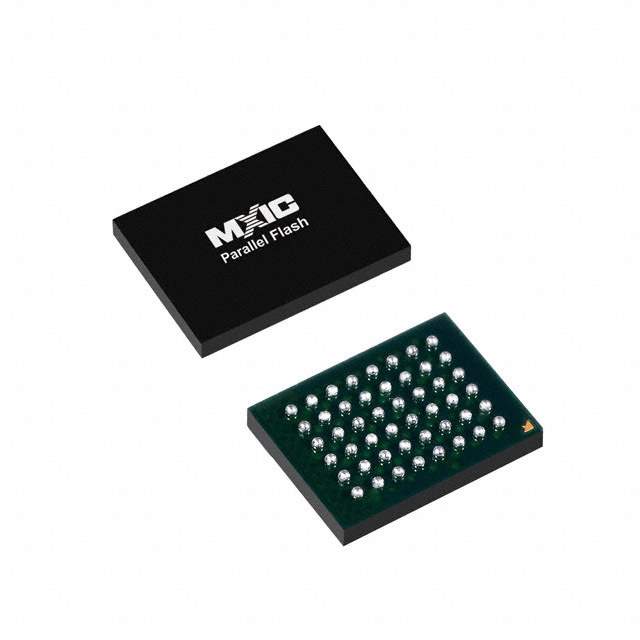

MX29LV400CBXEC-70G Real Image
Same model may have multiple batches, images only for reference.

MX29LV400CBXEC-70G

Part No MX29LV400CBXEC-70G
Manufacturer Macronix
Catalog Flash
Description IC FLASH 4MBIT 70NS 48LFBGA / NOR Flash Parallel 3V/3.3V 4M-bit 512K x 8/256K x 16 70ns 48-Pin CSP
Datasheet
MX29LV400CBXEC-70G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Macronix
Series MX29LV
Packaging Tray
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 4Mb (512K x 8)
Write Cycle Time - Word, Page 70ns
Access Time 70ns
Memory Interface Parallel
Operating Supply Voltage 2.7 V ~ 3.6 V
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 48-LFBGA, CSPBGA
Manufacturer Package 48-LFBGA, CSP (6x8)
Win Source Part Number 790320-MX29LV400CBXEC-70G
Popularity Medium
Supply and Demand Status Balance
Family Name MX29LV400CB
Introduction Date January 16, 2006
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MX29LV400CBXEC-70G CAD Model

Description

The Macronix MX29LV400CBXEC-70G is a 4Mb (512K x 8) Non-Volatile FLASH - NOR memory chip that operates at an operating supply voltage of 2.7 V ~ 3.6 V.

  • Access Time: 70ns
  • Package: 48-LFBGA, CSPBGA
  • Memory Interface: Parallel
  • Memory Format: FLASH
  • Write Cycle Time: 70ns
  • Series: MX29LV
  • Alternative Part Number: MX29LV400CB
  • Introduction Date: January 16, 2006
  • Estimated EOL Date: 2026
  • ECCN: EAR99
  • Country of Origin: Taiwan
