Same model may have multiple batches, images only for reference.

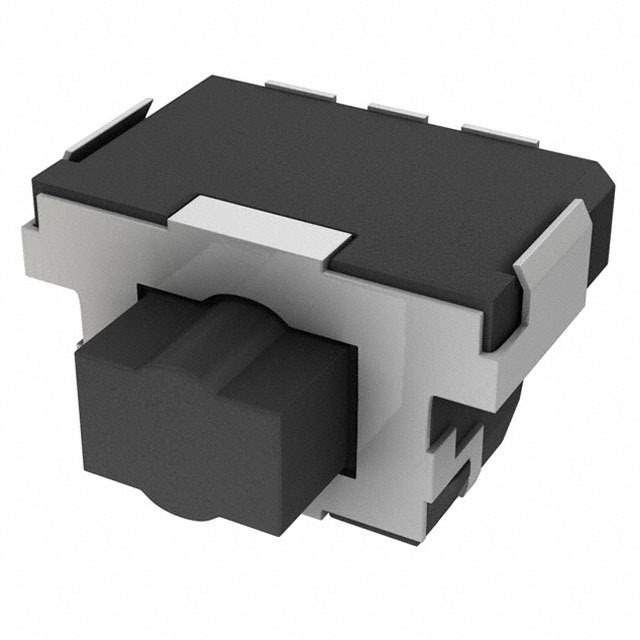

EVQQ0C03K Real Image
Same model may have multiple batches, images only for reference.

EVQQ0C03K

Part No EVQQ0C03K
Manufacturer Panasonic
Catalog Tactile Switches
Description Switch Tactile N.O./N.C. SPDT Button J-Bend 0.02A 15VDC 2.6N SMD Embossed Tape
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Actuator Length 1.5 mm
Mounting SMD (SMT)
Termination SMD/SMT
Contact Current Rating 20 mA
Contact Resistance 500 mΩ
Current Rating 20 mA
Depth 5.25 mm
Electrical Life 200 kcycles
Illumination Type Illuminated, Non-Illuminated
Length 6.2 mm
Max Current Rating 20 mA
Maximum Operating Temperature 70 °C
Max Voltage Rating (DC) 15 V
Mechanical Life 200 kcycles
Min Operating Temperature -20 °C
Mount Edge, Surface Mount
Operating Force 2.6 N
Orientation Right Angle
Packaging Tape and Reel
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Switch Function Off-Mom-Mom
Switch Travel 500 µm
Termination J-Bend
Throw Configuration SPDT
Voltage Rating (DC) 15 V
Win Source Part Number 1058081-EVQQ0C03K
Categories Tactile Switches
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian EVQQ0C03K CAD Model

Description

The Panasonic 1058081-EVQQ0C03K is a tactile switch that comes with a switch function of Off-Mom-Mom.

  • Product: 1058081-EVQQ0C03K
  • Manufacturer: Panasonic
  • Switch Function: Off-Mom-Mom
  • Termination: J-Bend
  • Mounting: SMD/SMT
  • Current Rating: 20 mA
  • Switch Travel: 500 µm
  • Electrical Life: 200 kcycles
  • Supply and Demand: Shortage
