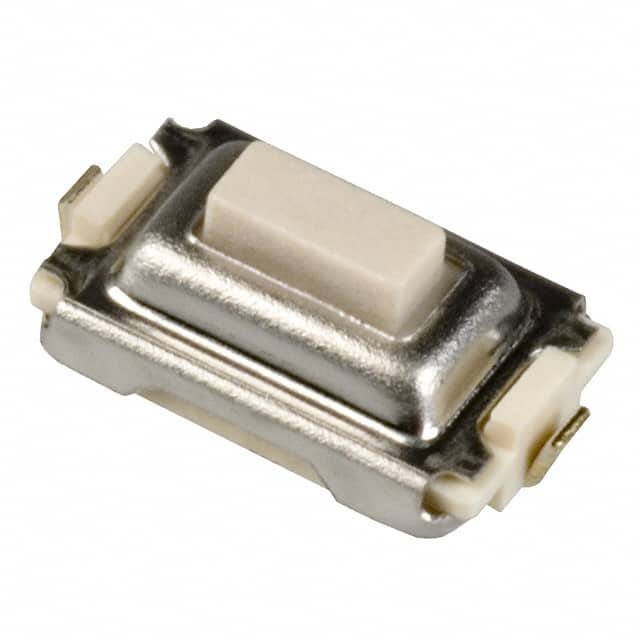

Same model may have multiple batches, images only for reference.
EVQ-PPDA25
Same model may have multiple batches, images only for reference.

EVQ-PPDA25

Part No EVQ-PPDA25
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
EVQ-PPDA25 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVQPP
Package Tape & Reel
Product Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 2.50mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.00mm x 3.70mm
Illumination Non-Illuminated
Operating Force 240gf
Ingress Protection Dust Proof
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.25mm
Mechanical Life 30,000 Cycles
Base Product Number EVQ-PP
Standard Package 4,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 918779-EVQ-PPDA25
Ultra Librarian 3D Model Ultra Librarian EVQ-PPDA25 CAD Model

Description

The EVQPP series is a surface mount tactile switch from Panasonic.

  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Standard actuator type
  • Operating Force: 240gf
  • Contact Rating: 0.05A @ 12VDC
  • Mechanical Life: 30,000 cycles
  • Mounting Type: Surface mount
  • Operating Temperature Range: -40°C to 85°C
  • Packaging: Tape and reel
  • Standard Package: 4,000 pcs
  • Product Status: Obsolete
