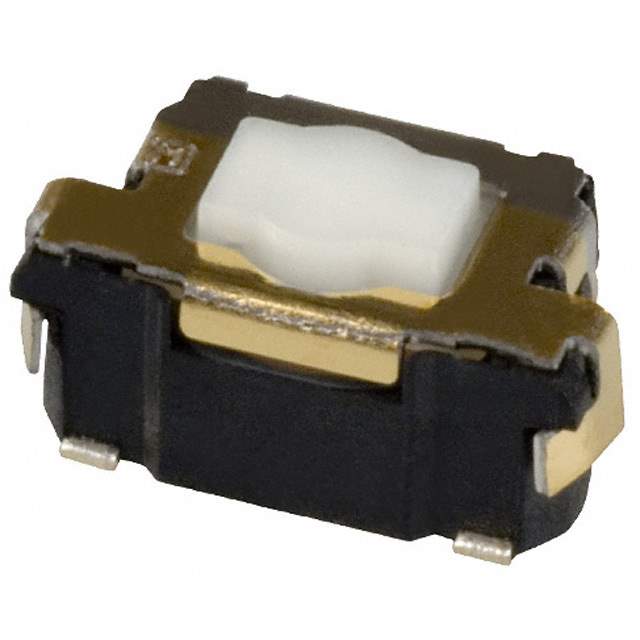

EVQ-P8603M

Get a Quote

Part No	EVQ-P8603M
Manufacturer	Panasonic
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Side Actuated Edge Mount, Right Angle
Datasheet	EVQ-P8603M Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	Panasonic Electronic Components
Series	EVQP8
Package	Tape & Reel
Product Status	Obsolete
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.02A @ 15VDC
Actuator Type	Rectangular Button
Mounting Type	Edge Mount, Right Angle
Actuator Length, Right Angle	2.10mm
Actuator Orientation	Side Actuated
Termination Style	SMD (SMT) Tab
Outline	6.20mm x 2.55mm
Illumination	Non-Illuminated
Operating Force	350gf
Temperature Range - Operating	-40°C ~ 85°C
Switch Travel	0.25mm
Mechanical Life	200,000 Cycles
Base Product Number	EVQ-P8
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Other Names	P12317SDKR,P12317SCT-NDR,P12317STR-NDR,P12317SCT,EVQP8603M,P12317STR
Standard Package	2,500
Win Source Part Number	1008585-EVQ-P8603M
Ultra Librarian 3D Model	Ultra Librarian EVQ-P8603M CAD Model

Description

The EVQ-P8603M is a tactile switch manufactured by Panasonic Electronic Components.

Package: Tape & Reel
Standard Package: 2,500
Circuit: SPST-NO
Switch Function: Off-Mom
Actuator Type: Rectangular Button
Actuator Orientation: Side Actuated
Travel: 0.25mm
Operating Force: 350gf
Mechanical Life: 200,000 Cycles
Mounting Type: Edge Mount, Right Angle
Operating Temperature: -40°C to 85°C
