Products specifications

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging Reel
Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating at Voltage 0.02A at 15VDC
Actuator Type Rectangular Button
Mounting Style Edge Mount, Right Angle
Actuator Length, Right Angle 2.10mm
Actuator Orientation Side Actuated
Termination Style SMD (SMT) Tab
Outline 6.20mm x 2.55mm
Illumination Non-Illuminated
Operating Force 240gf
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.25mm
Mechanical Life 500,000 Cycles
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 738191-EVQ-P4403M
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EVQ-P4403M CAD Model

Description

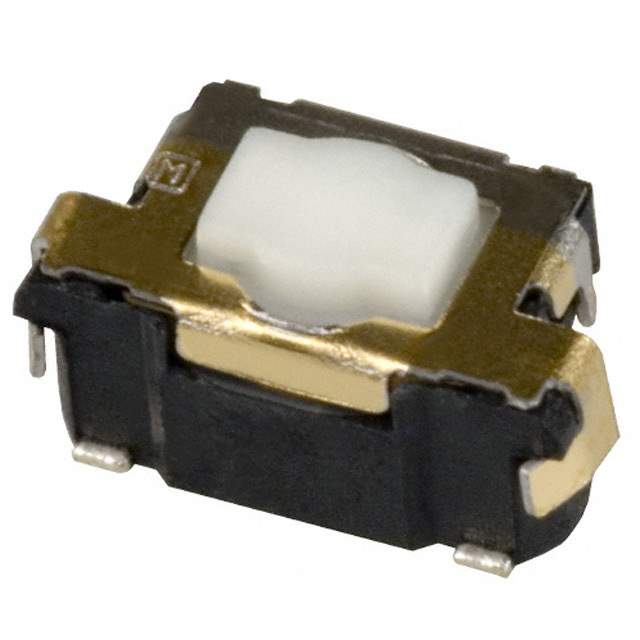

The EVQ-P4403M is a tactile switch manufactured by Panasonic. These switches are commonly used for momentary on/off functions in various electronic devices, providing tactile feedback to the user when pressed.

Applications:

  • Consumer electronics (e.g., remote controls, mobile phones, audio players)
  • Industrial equipment
  • Medical devices
  • Automotive applications (e.g., dashboard controls)
  • Computer peripherals (e.g., mice, keyboards)

Features:

  • Compact size
  • Long life expectancy
  • Tactile feedback
  • Surface mount technology (SMT)
  • High reliability

Benefits:

  • Provides a clear and reliable tactile response for user input.
  • Allows for high-density mounting on PCBs.
  • Offers a long operational lifespan, reducing maintenance costs.
  • Ensures consistent performance over time.

Additional Details:

The EVQ-P4403M is designed for surface mount soldering. It has specific dimensions and footprint requirements which can be found on the datasheet. It has a defined actuation force and travel. These parameters are important for the user experience and the proper functioning of the device it is implemented in. Consult the product datasheet for precise mechanical dimensions, electrical characteristics (e.g., contact resistance, current rating, voltage rating), and environmental specifications (e.g., operating temperature range). Panasonic tactile switches are known for their quality and reliability.
