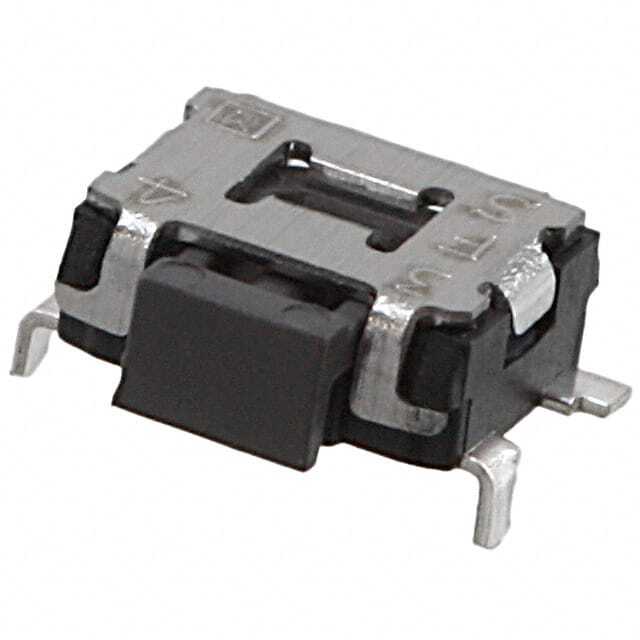

Same model may have multiple batches, images only for reference.

EVQ-P3401K

Name: EVQ-P3401K
Brand: Panasonic
SKU: 918774
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EVQ-P3401K
Manufacturer	Panasonic
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Datasheet	EVQ-P3401K Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	Panasonic
Series	EVQP3
Package	Tape & Reel
Product Status	Obsolete
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Rectangular Button
Mounting Type	Surface Mount, Right Angle
Actuator Orientation	Side Actuated
Termination Style	Gull Wing
Outline	4.70mm x 2.90mm
Illumination	Non-Illuminated
Operating Force	220gf
Temperature Range - Operating	-20°C ~ 70°C
Switch Travel	0.20mm
Mechanical Life	100,000 Cycles
Base Product Number	EVQ-P3
Standard Package	5,000 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	918774-EVQ-P3401K
Ultra Librarian 3D Model	Ultra Librarian EVQ-P3401K CAD Model

Description

The EVQ-P3401K is a tactile switch from Panasonic.

Series: EVQP3 series
Actuator Type: Rectangular button actuator type
Contact Rating: 0.05A @ 12VDC
Operating Force: 220gf
Mechanical Life: 100,000 cycles
Mounting: Surface mountable
Temperature Range: -20°C to 70°C
