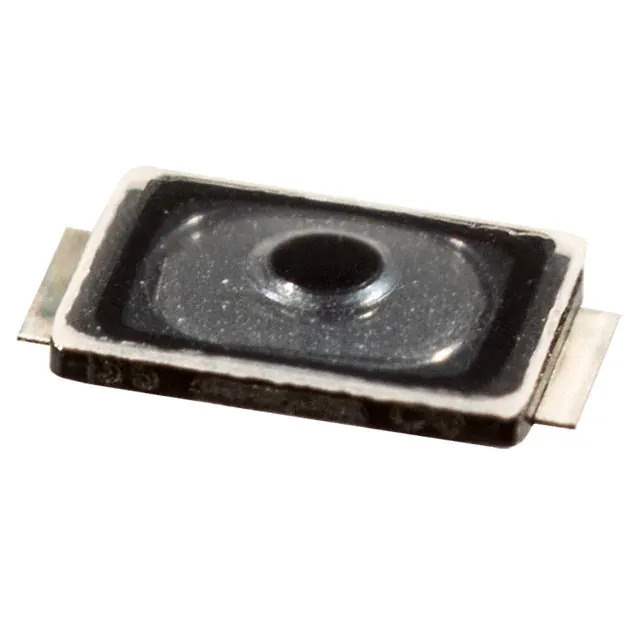

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVPAW
Package Tape & Reel
Product Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 0.60mm
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 3.00mm x 2.00mm
Illumination Non-Illuminated
Operating Force 240gf
Ingress Protection IP67 - Dust Tight, Waterproof
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.13mm
Mechanical Life 500,000 Cycles
Base Product Number EVP-AW
Standard Package 10,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 918768-EVP-AWCA2A
Ultra Librarian 3D Model Ultra Librarian EVP-AWCA2A CAD Model

Description

The EVP-AWCA2A is a tactile switch that belongs to the switches category.

  • Series: EVPAW series
  • Termination Style: SMD (SMT) tab
  • Package: Tape and reel
  • Ingress Protection Rating: IP67, dust tight and waterproof
  • Standard Package: 10,000 pcs
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Switch Travel: 0.13mm
  • Contact Rating: 0.02A @ 15VDC
  • Manufacturer: Panasonic
  • Mechanical Life: 500,000 cycles
  • Product Status: Obsolete
