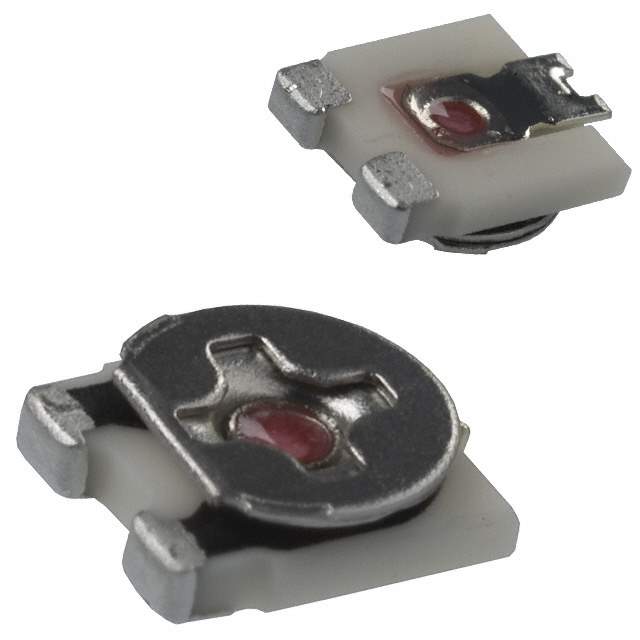

The EVM3WSX80B52 is a trimmer potentiometer manufactured by Panasonic. Trimmer potentiometers, also known as trimpots or variable resistors, are small adjustable resistors used to fine-tune circuits. They are typically single-turn or multi-turn devices that allow for precise adjustment of resistance.

Applications:

• Calibration Circuits: Adjusting the gain, offset, or frequency of circuits.
• Sensor Adjustment: Calibrating sensors for accurate readings.
• Volume Control: Fine-tuning audio levels in electronic devices.
• Timing Circuits: Adjusting timing parameters in electronic circuits.

Features:

• Variable Resistance: Allows for adjustment of resistance within a specified range.
• Compact Size: Suitable for use in space-constrained applications.
• Multi-Turn Adjustment: Offers precise adjustment of resistance.
• Surface Mount or Through-Hole Options: Available in different mounting styles to suit various board layouts.

Benefits:

• Precise Circuit Tuning: Enables fine-tuning of circuit parameters for optimal performance.
• Easy Adjustment: Allows for convenient adjustment of resistance using a screwdriver or similar tool.
• Versatile Application: Suitable for a wide range of electronic circuits.
• Cost-Effective: Provides a cost-effective solution for adjustable resistance requirements.

Additional Details: It is essential to consult the official Panasonic datasheet for the EVM3WSX80B52 to obtain precise specifications, including the resistance range, tolerance, temperature coefficient, and power rating. The datasheet will also provide information on the mechanical dimensions, mounting instructions, and environmental ratings. Incorrect adjustment or exceeding the specified ratings can lead to damage or inaccurate circuit operation. The 'B52' likely indicates a 5kΩ resistance value. Always refer to the manufacturer's documentation for detailed specifications.
