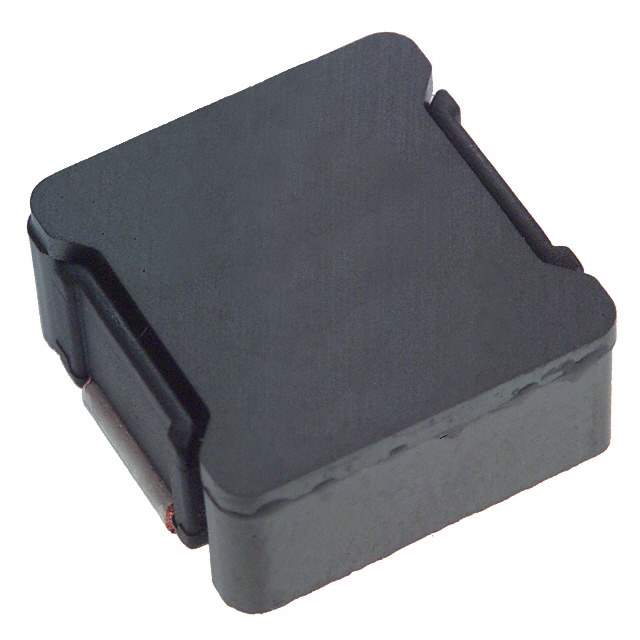

The ETQP6F4R1LFA is a metal composite power inductor from Panasonic. These inductors are designed for use in power supply circuits, particularly in DC-DC converters, where they store energy and provide filtering. The metal composite construction offers advantages such as high saturation current and low core loss.

Applications:

• DC-DC Converters: Used in step-up (boost), step-down (buck), and inverting converters for voltage regulation.
• Power Supplies: Implemented in AC-DC power supplies, battery chargers, and LED drivers to improve efficiency and reduce noise.
• Point-of-Load (POL) Converters: Provides localized power conversion in electronic devices.
• Filtering Circuits: Used to filter out unwanted frequencies and noise in power lines.
• Voltage Regulators: Maintains stable voltage levels in electronic systems.

Features:

• Metal Composite Core: Provides high saturation current and low core loss.
• Shielded Construction: Minimizes electromagnetic interference (EMI).
• Low DC Resistance (DCR): Reduces power loss due to resistance.
• High Current Capability: Handles high current levels without significant performance degradation.
• Compact Size: Enables space-saving designs.
• RoHS Compliant: Compliant with Restriction of Hazardous Substances directive.

Benefits:

• High Efficiency: Reduces power loss in power conversion circuits.
• Low EMI: Prevents electromagnetic interference, improving system stability.
• Stable Performance: Maintains consistent performance over a wide range of operating conditions.
• Robust Design: Durable construction ensures reliability in various applications.
• Compact Footprint: Allows for smaller and more efficient power supply designs.

Additional Details:

The ETQP6F4R1LFA has an inductance value of 4.1 µH. The metal composite core material helps to achieve high saturation current, which is essential in switching power supplies to prevent inductor saturation. Its shielded construction helps in reducing EMI, making it suitable for use in sensitive electronic equipment. The low DCR ensures that power loss due to the inductor's resistance is minimized, which leads to improved overall efficiency. It is designed for surface mount technology (SMT) and is suitable for reflow soldering. Always refer to the datasheet for precise specifications like Isat, Irms, and dimensions.
