Same model may have multiple batches, images only for reference.

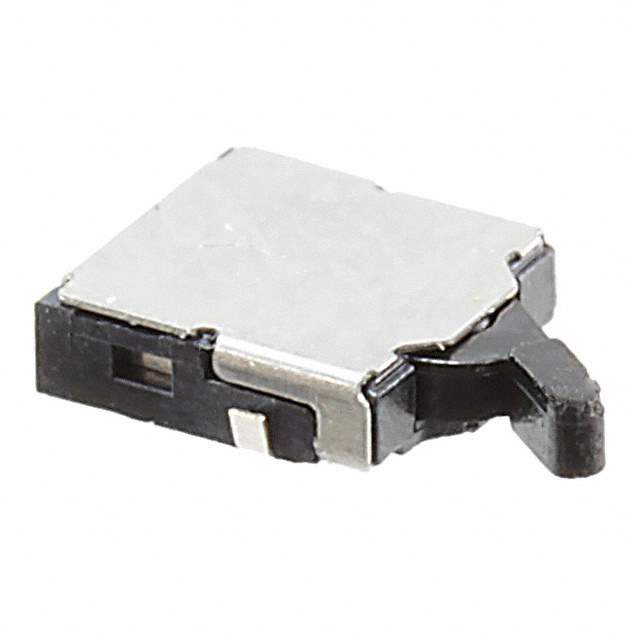

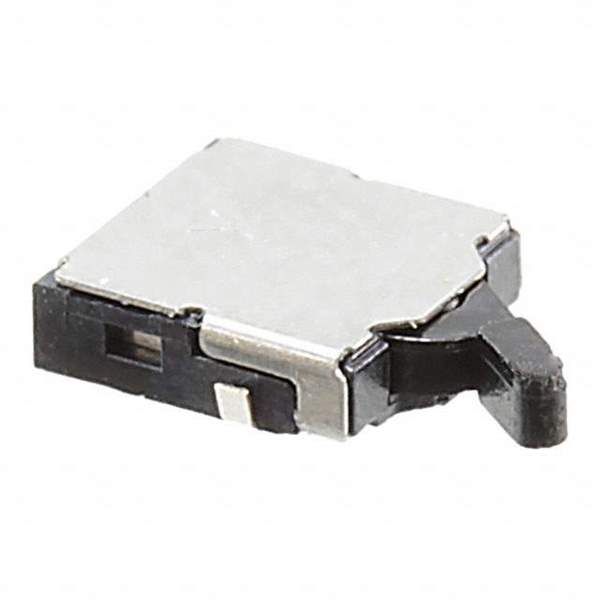

ESE18R11B Real Image
Same model may have multiple batches, images only for reference.

ESE18R11B

Part No ESE18R11B
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description Electromechanical Switch Detect Switch N.O./N.C. SPST 0.01A Embossed Tape
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Actuator Length 2.15 mm
Contact Current Rating 10 mA
Contact Plating Copper, Tin
Contact Resistance 500 mΩ
Current Rating 10 mA
Electrical Life 50 kcycles
Height 1.2 mm
Lead Free Lead Free
Life (Cycles) 50 kcycles
Max Operating Temperature 60 °C
Max Voltage Rating (DC) 5 V
Mechanical Life 50 kcycles
Min Operating Temperature -10 °C
Mount Surface Mount
Number of Positions 2
Number of Terminals 2
Operating Force 300 mN
Operating Position 2.5908 mm
Orientation Right Angle
REACH SVHC No SVHC
RoHS Compliant
Switch Function Off-Mom
Termination J-Bend
Throw Configuration SPST
Voltage Rating (DC) 5 V
Width 4 mm
Win Source Part Number 1110301-ESE18R11B
Categories Snap Action,Limit Switches
Manufacturer Panasonic
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ESE18R11B CAD Model

Description

The Panasonic 1110301-ESE18R11B is a medium popularity electronic component belonging to the snap action and limit switches category.

  • Supply and Demand: Limited
  • Application: Low Current Rating
  • Switch Type: SPST
  • Current Rating: 10 mA
  • Contact Resistance: 500 mΩ
