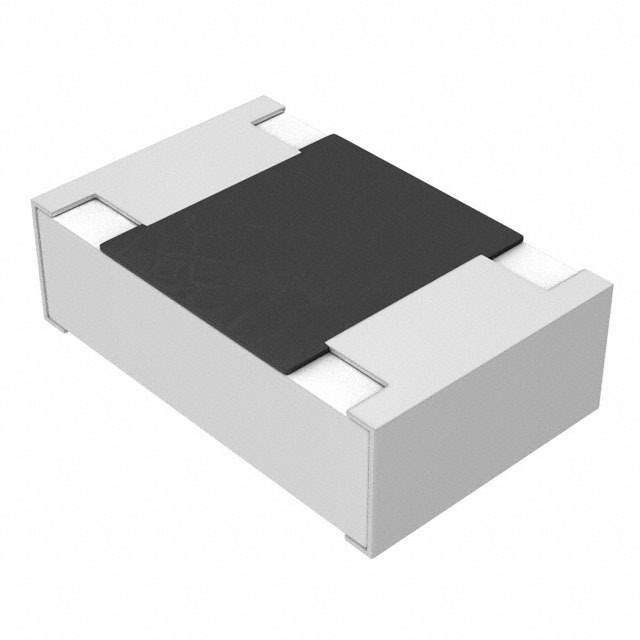

The ERJ6ENF5101V is a thick film chip resistor from Panasonic, designed for surface mount applications. It is part of the ERJ series, which is known for its high reliability and stability in various environmental conditions. The resistor offers precise resistance with excellent power dissipation capabilities.

Applications

• Consumer Electronics: Used in devices such as televisions, audio equipment, and mobile phones for current limiting, voltage division, and pull-up/pull-down resistor applications.
• Industrial Equipment: Employed in industrial control systems, power supplies, and measurement instruments for accurate and stable resistance.
• Automotive Electronics: Used in automotive control units (ECUs), sensors, and lighting systems where reliability and temperature stability are crucial.
• Medical Devices: Found in medical monitoring equipment, diagnostic tools, and therapeutic devices for precise electronic control.
• Communication Equipment: Used in network devices, telecom infrastructure, and wireless communication systems for signal conditioning and impedance matching.

Features

• High Reliability: Constructed with high-quality materials and manufacturing processes to ensure long-term stability.
• Small Size: Compact 0805 package for space-saving design.
• Excellent Temperature Stability: Low temperature coefficient of resistance (TCR) for stable performance over a wide temperature range.
• RoHS Compliant: Environmentally friendly and compliant with RoHS standards.
• High Power Dissipation: Suitable for applications requiring moderate power handling.

Benefits

• Precise Resistance: Provides accurate and stable resistance values, ensuring proper circuit functionality.
• Space Saving: Small package size allows for dense circuit designs.
• Long-Term Stability: Maintains resistance value over time, reducing the need for frequent recalibration or replacement.
• Wide Operating Temperature Range: Operates reliably in various environmental conditions.
• Easy to Solder: Designed for easy and reliable surface mount soldering.

Additional Details

The ERJ6ENF5101V has a resistance value of 5.1 kΩ with a tolerance of ±1%. It has a power rating of 0.25W. The operating temperature range is typically -55°C to +155°C. The resistor is made using a thick film resistive element on an alumina substrate, with a protective overcoat. The terminations are typically made of a solder-plated nickel barrier, providing excellent solderability and resistance to solder leaching. This resistor is ideal for general-purpose applications where precision, stability, and reliability are important.
