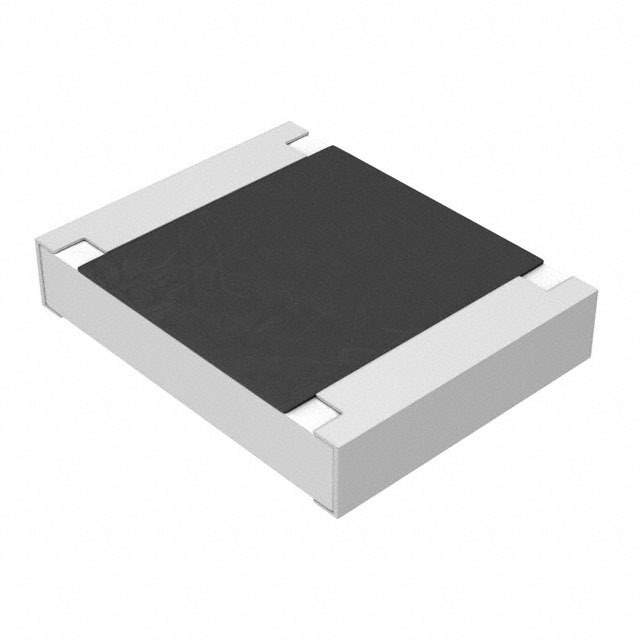

The ERJ14Y0R00U is a current sensing chip resistor manufactured by Panasonic, designed for precise current detection in various electronic circuits. As a member of the ERJ series, this resistor offers high reliability and stable performance in a surface mount package. Its low resistance value allows for accurate current measurement with minimal impact on the circuit.

Applications:

• Current sensing in power supplies
• Current limiting in LED drivers
• Overcurrent protection circuits
• Battery management systems
• Motor control applications

Features:

• Surface Mount Technology (SMT) for automated assembly
• Low resistance value
• High precision and stability
• Compact size (typically 1206)
• RoHS compliant
• Resistance value: 0 Ω (Jumper)

Benefits:

• Accurate current measurement with minimal voltage drop
• Improved circuit protection and reliability
• Simplified circuit design for current sensing applications
• Reduced assembly costs due to automated placement
• Environmentally friendly due to RoHS compliance

Additional Details:

The ERJ14Y0R00U has a resistance value of 0 Ω (Ohms). It functions as a zero-ohm jumper resistor, acting as a direct electrical connection in a circuit. It has a power rating of 0.25W. It operates within a specified temperature range, generally from -55°C to +155°C. Being a zero-ohm resistor, its temperature coefficient of resistance (TCR) is not a significant parameter. Proper soldering techniques and PCB layout are essential for reliable performance. Packaging is generally on tape and reel for automated pick-and-place assembly.

As a current sense resistor (even if 0 ohms), placement close to the measured component is important. Appropriate reflow profiles are necessary for surface mount components. Storage conditions should be controlled to prevent moisture absorption, as this can affect the resistor's long-term stability.
